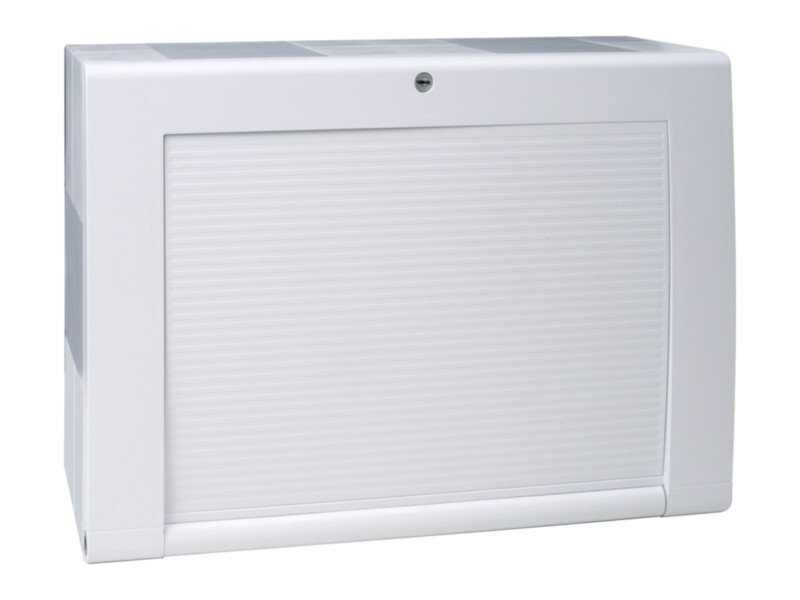

Esser FlexES power supply extension, 24 V / 12 Ah, 150 W

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€988.00 €1,225

Pre-order

SKU

FX808363

Product files

Datasheet

Toote kirjeldus

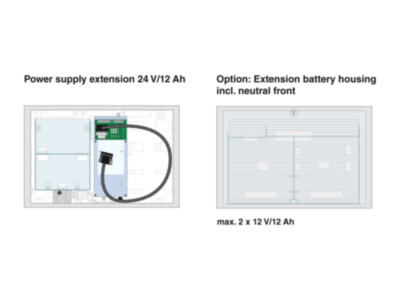

The power supply extension adds 150 W to the panel's power supply via a plug-in connection. There is room for two 12 V / 12 Ah batteries at the bottom of the housing; more can be connected with extension housing FX808314. Only batteries of the same type may be connected.

Key features

+150 W, output 24 V DC, max 6 A
Room for 2 x 12 V / 12 Ah batteries
Expandable with battery housing FX808314

Technical data

Rated current	0.7 A
Rated voltage	230 V AC
Frequency	50 … 60 Hz
Output voltage	24 V DC
Output current	max. 6 A (total)
Current for external devices	3 A
Batteries	2 x 12 V / 12 Ah (max. 4 x 12 V/12 Ah)
Protection rating	IP 30
Operating temperature	-5 °C … 45 °C
Storage temperature	-10 °C … 50 °C
Humidity	< 95 % (non-condensing)
Material	ABS, 10% glass fiber reinforced, V - 0
Colour	gray, similar to Pantone 538
Dimensions	450 × 320 × 185 mm (W × H × D)
Weight	approx. 6.2 kg
