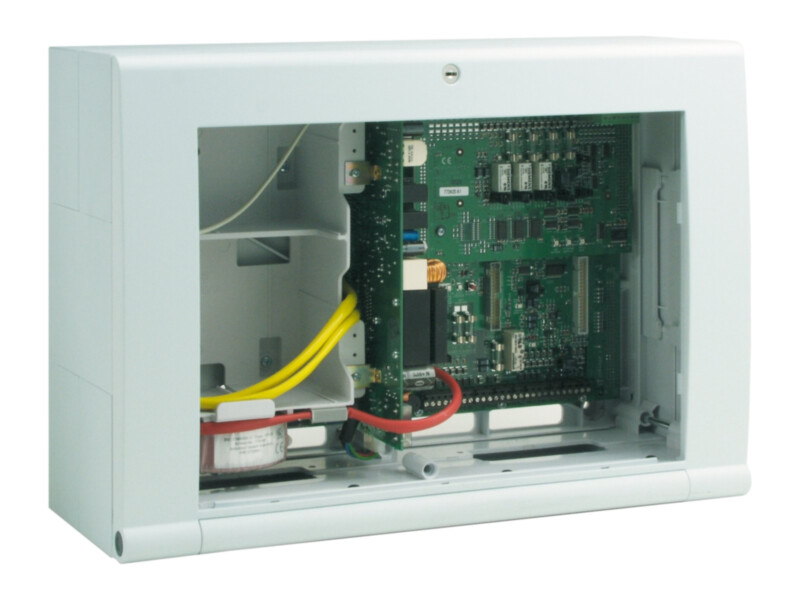

Esser IQ8Control C fire alarm panel, 1–2 loops, for 2x12 Ah batteries

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€1,760.00 €2,182

In stock 1

SKU

808003

Product files

Datasheet

Toote kirjeldus

IQ8Control C is a compact panel for small and medium-sized sites. It has two micromodule slots and up to two esserbus loops, with up to 254 digital loop addresses in total. The loop tolerates short circuits and interruptions, and each loop takes up to 127 devices.

Key features

Up to 2 esserbus analogue loops, 254 addresses
Up to 127 devices and 32 transponders per loop
Loop length up to 3.5 km (I-Y(ST)Y 0.8 mm)
Loop tolerant to short circuit and interruption
230 V AC, 2x12 Ah batteries

Technical data

Quiescent current	approx. 215 mA (basic configuration without operating unit)
Rated current	0.35 A (standard); 0.7 A (powered loop)
Rated voltage	230 V AC
Frequency	50 … 60 Hz
Current for external devices	2 A
Batteries	2 x 12 Ah, 2 x 24 Ah in extension housing
Protection rating	IP30
Operating temperature	-5 °C … 45 °C
Storage temperature	-5 °C … 50 °C
Humidity	< 95 % (non-condensing)
Material	ABS, 10 % glass fiber reinforced, V - 0
Colour	gray similar to Pantone 538
Weight	approx. 6.5 kg
