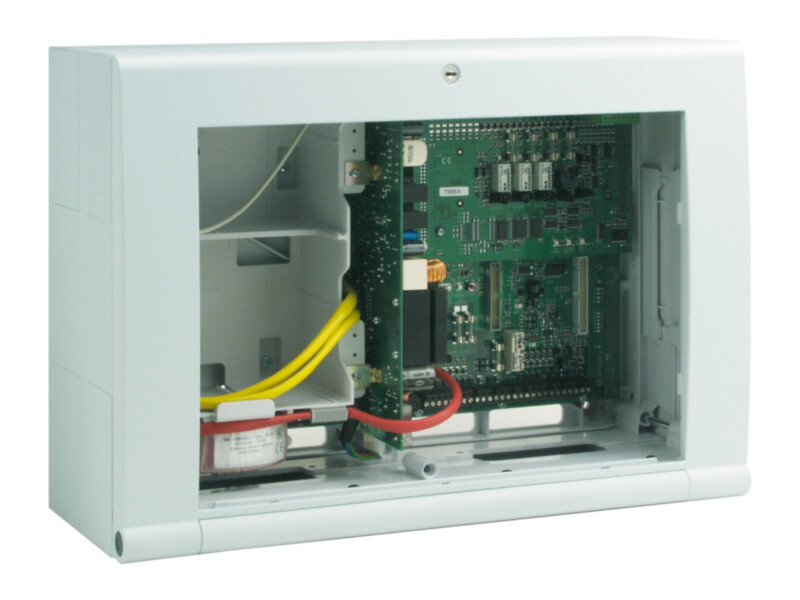

Esser IQ8Control C fire alarm panel for 19" rack, 1–2 loops, for 2x12 Ah batteries

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€2,242.00 €2,780

Pre-order

SKU

808139

Product files

Datasheet

Toote kirjeldus

Analogue addressable fire alarm panel IQ8Control C for 19" rack mounting (7 HU), for smaller sites. Two micromodule slots and up to two esserbus loops, up to 254 digital loop addresses in total. Each loop takes up to 127 devices and 32 transponders, up to 3.5 km long, and tolerates short circuit and interruption.

Key features

19" rack, 7 HU
Up to 2 loops, 254 addresses
Loop length up to 3.5 km
2x12 Ah batteries

Technical data

Quiescent current	approx. 215 mA (basic configuration without operating unit)
Rated current	0.35 A (standard); 0.7 A (powered loop)
Rated voltage	230 V AC
Frequency	50 … 60 Hz
Current for external devices	2 A
Batteries	2 x 12 Ah, 2 x 24 Ah in extension housing
Protection rating	IP30
Operating temperature	-5 °C … 45 °C
Storage temperature	-5 °C … 50 °C
Humidity	< 95 % (non-condensing)
Material	ABS, 10 % glass fiber reinforced, V - 0
Colour	gray similar to Pantone 538
Weight	approx. 6.5 kg
