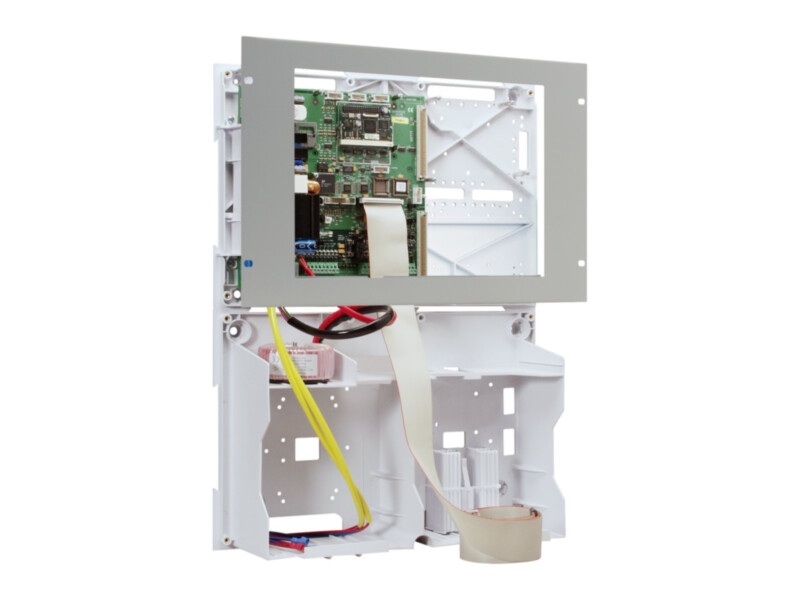

Esser IQ8Control M fire alarm panel for 19" rack, up to 7 loops, for 2x24 Ah batteries

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€2,219.00 €2,752

Pre-order

SKU

808219

Product files

Datasheet

Toote kirjeldus

Analogue addressable fire alarm panel IQ8Control M for 19" rack mounting (7 HU), for medium-sized and larger sites. With peripheral module 772477 it takes up to five and with extension module 772476 up to seven micromodules, i.e. esserbus loops. Each loop takes up to 127 devices and 32 transponders, up to 3.5 km long, and tolerates short circuit and interruption.

Key features

19" rack, 7 HU
Up to 7 micromodules / loops
Up to 635 loop addresses
2x24 Ah batteries

Technical data

Quiescent current	approx. 215 mA (basic configuration without operating unit)
Rated current	0.35 A (standard); 0.7 A (powered loop)
Rated voltage	230 V AC
Frequency	50 … 60 Hz
Output voltage	12 V DC
Current for external devices	2 A
Batteries	max. 2 x 12 V/24 Ah
Protection rating	IP30
Operating temperature	-5 °C … 45 °C
Storage temperature	-10 °C … 50 °C
Humidity	< 95 % (non-condensing)
Material	ABS, 10 % glass fiber reinforced, V - 0
Colour	gray similar to Pantone 538
Dimensions	450 × 640 × 185 mm (W × H × D)
Weight	approx. 11.5 kg
