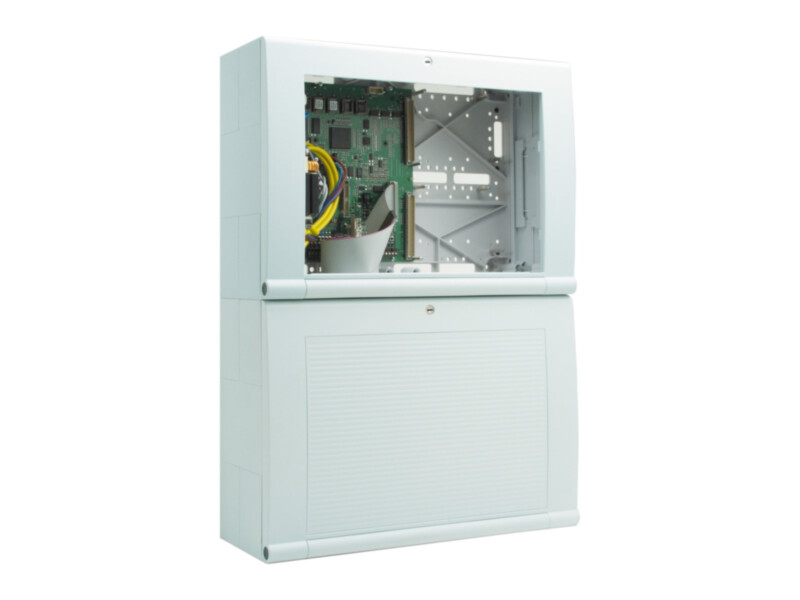

Esser IQ8Control M fire alarm panel, up to 7 loops, for 2x24 Ah batteries

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€2,038.00 €2,527

In stock 2

SKU

808004

Product files

Datasheet

Toote kirjeldus

IQ8Control M is for medium-sized and larger sites. With peripheral module 772477 it takes up to five and with extension module 772476 up to seven micromodules, i.e. esserbus loops; the system supports up to 635 digital loop addresses.

Key features

Up to 7 micromodules / loops
Up to 635 loop addresses
Loop tolerant to short circuit and interruption
2x24 Ah batteries

Technical data

Quiescent current	approx. 215 mA (basic configuration without operating unit)
Rated current	0.35 A (standard); 0.7 A (powered loop)
Rated voltage	230 V AC
Frequency	50 … 60 Hz
Output voltage	12 V DC
Current for external devices	2 A
Batteries	max. 2 x 12 V/24 Ah
Protection rating	IP30
Operating temperature	-5 °C … 45 °C
Storage temperature	-10 °C … 50 °C
Humidity	< 95 % (non-condensing)
Material	ABS, 10 % glass fiber reinforced, V - 0
Colour	gray similar to Pantone 538
Dimensions	450 × 640 × 185 mm (W × H × D)
Weight	approx. 11.5 kg
