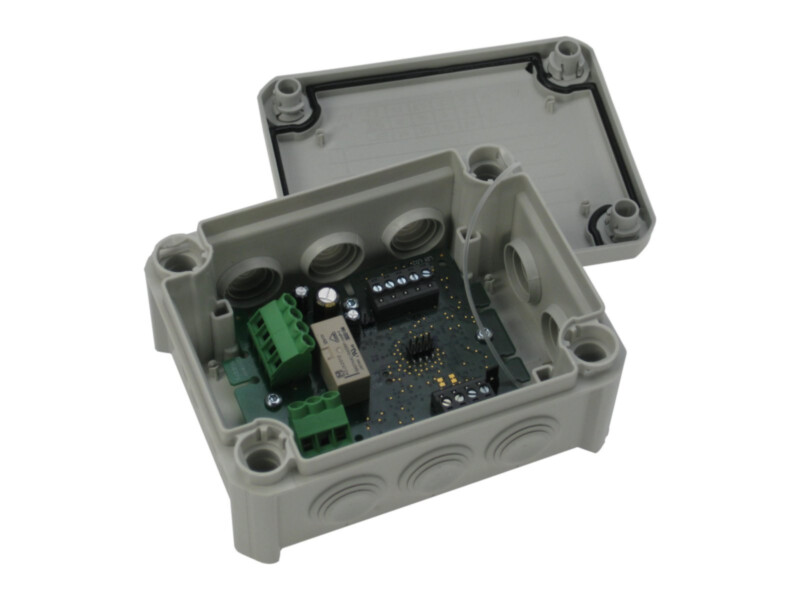

Esser IQ8FCT LP transponder, 230 V AC / 16 A output, IP65

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€188.00 €233

In stock 36

SKU

808621

Product files

Datasheet

Toote kirjeldus

IQ8FCT LP controls and monitors external fire control devices such as fire dampers: the device is connected to the relay output and its end positions are monitored via the input. The transponder can also be used as a technical alarm to monitor an external contact. It connects to the esserbus / esserbus-PLus loop of FlexES Control and IQ8Control panels and is powered from the loop.

Key features

Control and monitoring of fire protection devices
Output up to 230 V AC / 16 A
Programmable run-time monitoring and fail-safe mode
Manual output activation on the transponder
IP65 surface-mount housing, silicone cable entries

Technical data

Operating voltage	14 … 42 V DC
Quiescent current	approx. 45 µA @ 19 V DC
Cable length	500 m
System limit	max 127 pieces per loop
Terminals	max. 2.5 mm 2 (AWG 26-14)
Protection rating	IP 65
Operating temperature	-20 °C … +70 °C
Storage temperature	-30 °C … +75 °C
Humidity	≤ 95 % rel. humidity (non-condensing)
Material	PP plastic
Colour	gray (similar RAL 7035)
Dimensions	150 x 116 x 67 mm
Weight	approx. 250 g
