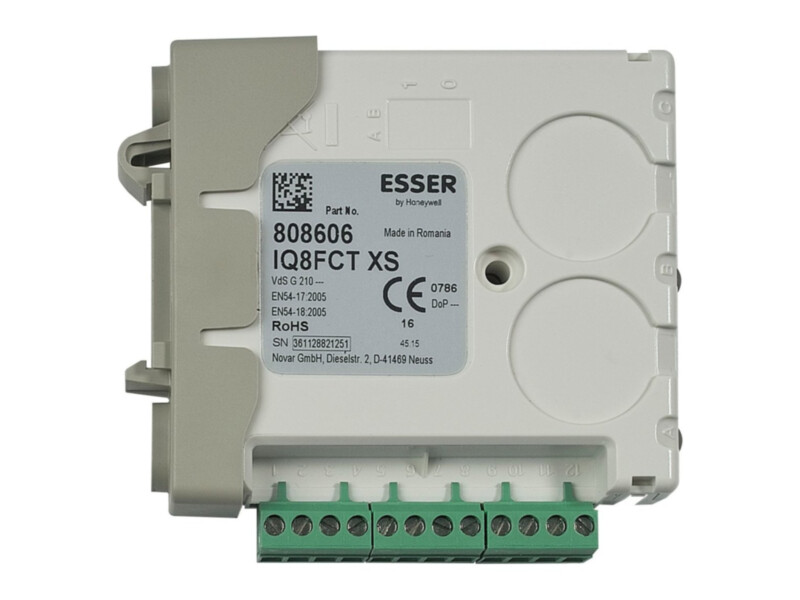

Esser IQ8FCT XS transponder, 1 IN / 1 OUT, with isolator

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€123.00 €153

In stock 24

SKU

808606

Product files

Datasheet

Toote kirjeldus

IQ8FCT XS controls and monitors external fire protection devices such as fire dampers, or works as a technical alarm monitoring an external contact. It connects to the esserbus / esserbus-PLus loop of FlexES Control and IQ8Control panels and is loop-powered.

Key features

Control and monitoring of fire protection devices
Powered from the esserbus loop
Built-in loop isolator
Programmable run-time monitoring (fire dampers)
Compact, mounts on 35 mm DIN rail

Technical data

Operating voltage	14 … 42 V DC
Quiescent current	approx. 45 µA @ 19 V DC
Cable length	500 m
System limit	max 127 pieces per loop
Terminals	max. 2.5 mm 2 (AWG 26-14)
Protection rating	IP 30 IP 50 (M200SMB / SMB6-V0)
Operating temperature	-20 °C … +70 °C
Storage temperature	-30 °C … +75 °C
Humidity	≤ 95 % rel. humidity (non-condensing)
Material	PC/ASA plastic
Colour	gray (similar RAL 7035)
Dimensions	90 x 93 x 23 mm 130 x 143 x 49 mm (with housing M200SMB) 245 x 180 x 100 mm (with housing SMB6-V0)
Weight	approx. 90 g approx. 250 g (with housing M200SMB) approx. 790 g (with housing SMB6-V0)
