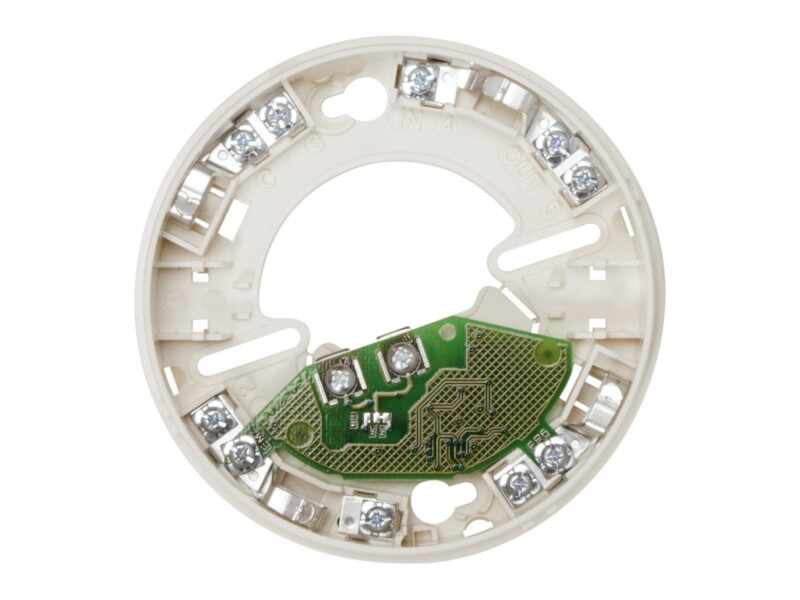

Esser IQ8Quad detector base with relay contact

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€33.10 €41

In stock 18

SKU

805591

Product files

Datasheet

Toote kirjeldus

The base has a potential-free relay contact, selectable by jumper as NO or NC (default NO), controlled by the detector's remote output, e.g. to close a door or stop ventilation. The loop closes automatically when the detector is removed.

Key features

Potential-free relay contact NO/NC
Negligible current draw
Loop closes when the detector is removed
Removal lock included

Technical data

Current consumption	5 µA (w/o detector, active relay)
Contact rating	30 V DC/1 A
Terminals	ø 0.6 mm to 2 mm²
Operating temperature	-20 °C … 72 °C
Storage temperature	-25 °C … 75 °C
Humidity	< 95 % (non-condensing)
Material	ABS
Colour	white, similar to RAL 9010
Dimensions	Ø 117 mm, height 24 mm (incl. detector 62 mm)
Weight	approx. 80 g
