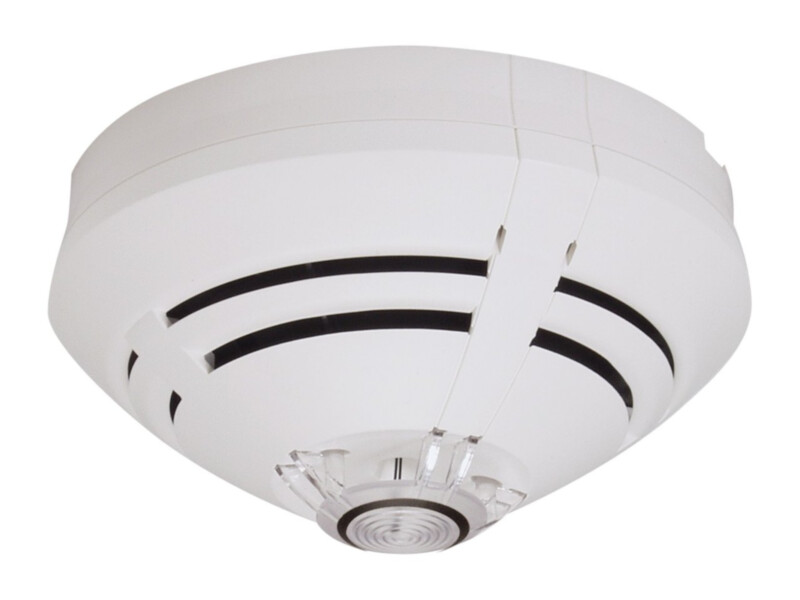

Esser IQ8Quad fixed heat detector class B, addressable, with isolator, EN 54-5

Addressable IQ8Quad fixed heat detector for rooms with a higher ambient temperature (EN 54-5 class B, operating temperature up to 65 °C), for example boiler rooms. It responds at a fixed temperature, and the built-in isolator keeps the loop working in case of a short circuit. Heat detectors are marked with a black ring on the light pipe. Base ordered separately.

Key features

• EN 54-5 class B, higher operating temperature
• Built-in loop isolator
• Suits e.g. boiler rooms

Technical data
