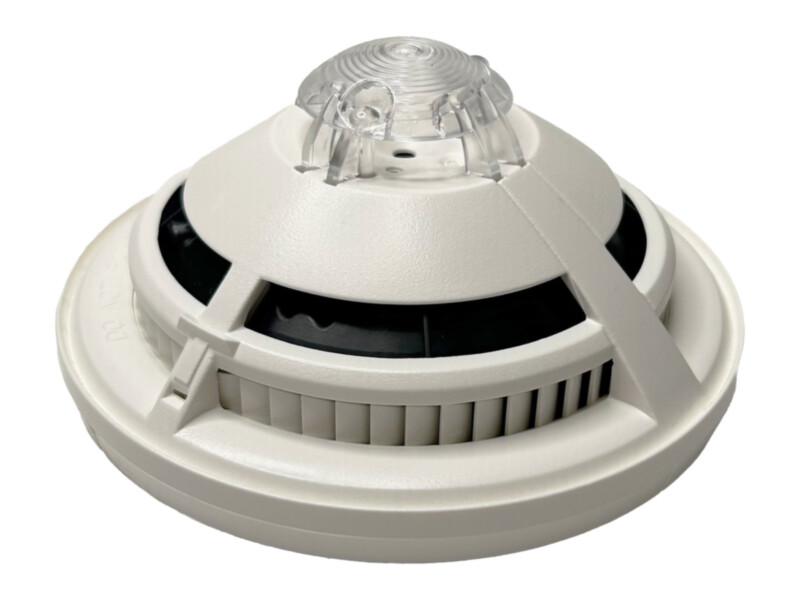

Esser IQ8Quad O²T multisensor detector, self-test, with isolator, EN 54-5/7/17

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€131.00 €162

Pre-order

SKU

802374-ST

Product files

Datasheet

Product details

Product parameters
IP kaitseaste	IP43

Toote kirjeldus

IQ8Quad O²T Self-Test measures smoke at two angles plus temperature, which helps to tell a real fire from a false alarm caused by deceptive phenomena. The detector tests itself with test aerosol and heat, and anti-masking checks that the smoke openings are clear.

Key features

Dual-angle optical sensor and heat sensor
Automatic self-test of the optical and heat sensors
Anti-masking detects covered detectors
Bluetooth and one-person inspection with the CLSS app
Built-in loop isolator

Technical data

Operating voltage	9.2 V DC … 42.4 V DC
Operating voltage (EN 54-17)	14 V DC … 42.4 V DC
Operating voltage, self-test	34 V DC … 42.4 V DC
Quiescent current	50 µA
Monitored area	max. 30 m² / max. 110 m²
Mounting height	max. 7.5 m / max. 12 m
Standard	EN 54-5 A1R / EN 54-17
Protection rating	IP 21 with base, IP 42 with base + option 805570, IP 43 with base + option 805572.50/805573
Operating temperature	-20 °C … +50 °C
Storage temperature	-25 °C … +65 °C
Humidity	≤ 95% humidity (non-condensing)
Material	ABS
Colour	white (similar RAL 9010)
Dimensions	Ø 117 mm, H = 70 mm
Weight	86 g
