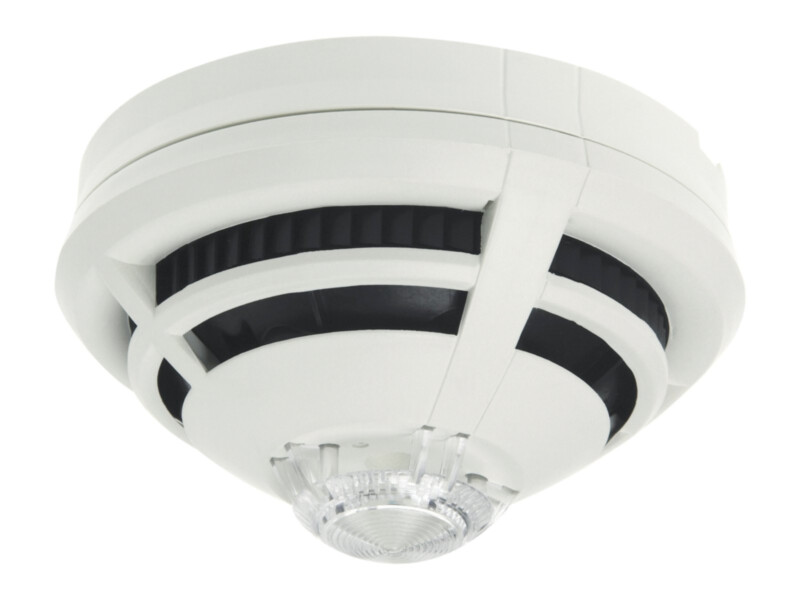

Esser IQ8Quad O²T/So multisensor detector with sounder, with isolator, EN 54-3/5/7

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€158.00 €196

In stock 62

SKU

802384

Product files

Datasheet

Product details

Product parameters
IP kaitseaste	IP43

Toote kirjeldus

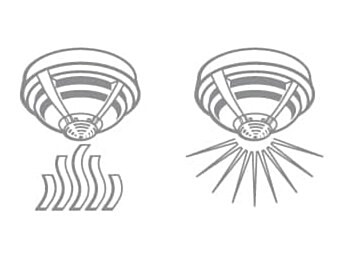

In addition to smoke and heat detection with O²T multisensor technology, the detector has a built-in sounder whose volume can be set to eight levels. The sounder is loop-powered and needs no additional address.

Key features

O²T multisensor + built-in sounder
8 volume levels
Loop-powered sounder, no additional address
Automatic synchronisation of sounders
Built-in loop isolator

Technical data

Operating voltage	8 … 42 V DC
Quiescent current	approx. 80 µA
Monitored area	max. 110 m²
Mounting height	max. 12 m
Air velocity	0 … 25.4 m/s
Standard	EN 54-7/-5 B/-17, CEA 4021
Protection rating	IP43 (with base + options)
Operating temperature	-20 °C … 65 °C
Storage temperature	-25 °C … 75 °C
Humidity	< 95 % (non-condensing)
Material	ABS plastic
Colour	white, similar to RAL 9010
Dimensions	Ø 117 mm, height 67 mm (incl. base)
Weight	approx. 145 g
