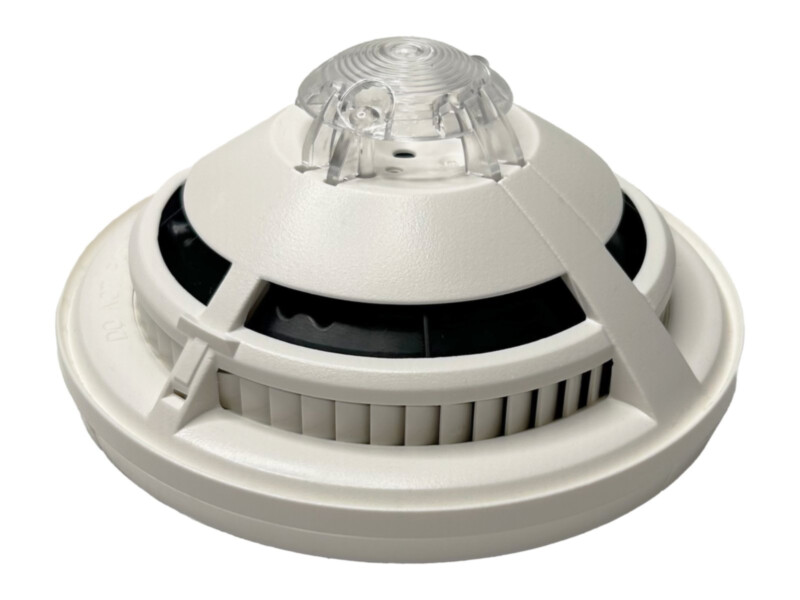

Esser IQ8Quad OT multisensor detector, self-test, with isolator, EN 54-5/7/17

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€136.00 €169

Pre-order

SKU

802373-ST

Product files

Datasheet

Product details

Product parameters
IP kaitseaste	IP43

Toote kirjeldus

IQ8Quad OT Self-Test combines an optical smoke sensor and a heat sensor and tests both itself: patented technology applies test aerosol and heat inside the detector. Anti-masking checks that the smoke inlets and outlets are clear, and one person can carry out the inspection with the CLSS app.

Key features

Optical smoke sensor and heat sensor
Automatic self-test
Anti-masking
Bluetooth and one-person inspection with the CLSS app
Built-in loop isolator

Technical data

Operating voltage	9.2 V DC … 42.4 V DC
Operating voltage (EN 54-17)	14 V DC … 42.4 V DC
Operating voltage, self-test	34 V DC … 42.4 V DC
Quiescent current	50 µA
Monitored area	max. 30 m² / max. 110 m²
Mounting height	max. 7.5 m / max. 12 m
Standard	EN 54-5 A1R / EN 54-17
Protection rating	IP 21 with base, IP 42 with base + option 805570, IP 43 with base + option 805572.50/805573
Operating temperature	-20 °C … +50 °C
Storage temperature	-25 °C … +65 °C
Humidity	≤ 95% humidity (non-condensing)
Material	ABS
Colour	white (similar RAL 9010)
Dimensions	Ø 117 mm, H = 70 mm
Weight	86 g
