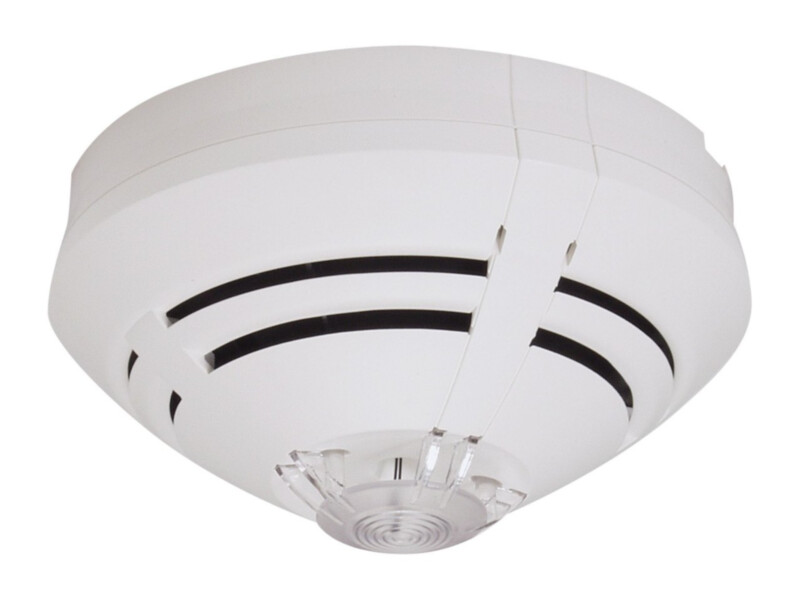

Esser IQ8Quad OTblue-LKM multisensor detector for air ducts, with isolator
€198.00
€246
In stock 3
SKU
802379
Product files
Product details
| IP kaitseaste | IP43 |
|---|
Toote kirjeldus
The detector is designed as an air duct smoke detector in the Venturi duct module. Its optical chamber uses a highly sensitive blue LED instead of red, which also detects small smoke particles; together with the heat sensor this reduces false alarms.
Key features
- Air duct smoke detector
- Blue LED for small smoke particles
- Optical + heat sensor
- Built-in loop isolator
- Only in the Venturi duct module
Technical data
| Operating voltage | 9 … 42 V DC |
|---|---|
| Quiescent current | approx. 50 µA |
| Air velocity | 1 … 20 m/s |
| Standard | EN 54-7, EN 54-5 |
| Protection rating | IP 43 (with base + option) |
| Operating temperature | -20 °C … 50 °C |
| Storage temperature | -25 °C … 75 °C |
| Humidity | < 95 % (non condensing) |
| Material | ABS plastic, white, similar RAL 9010 |
| Dimensions | Ø 117 mm, height 62 mm (incl. base) |
| Weight | approx. 110 g |
