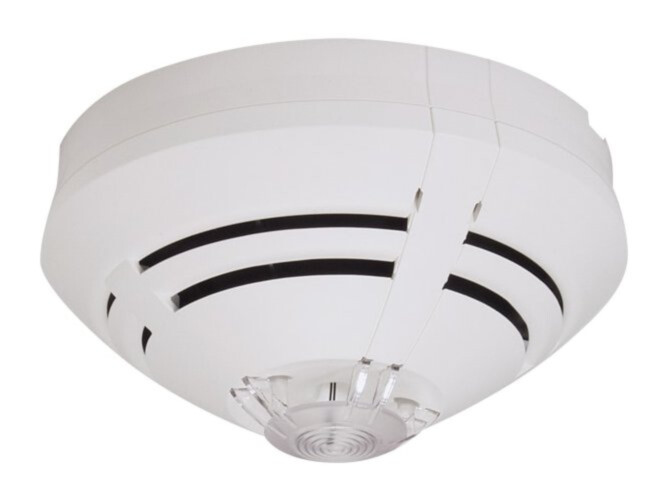

Esser IQ8Quad OTblue multisensor detector, addressable, with isolator, EN 54-5/7

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€99.00 €123

In stock 10

SKU

802375

Product files

Datasheet

Product details

Product parameters
IP kaitseaste	IP43

Toote kirjeldus

OTblue uses a highly sensitive blue LED instead of red in its optical chamber, detecting open fires, smouldering fires and smoke with very small particles. Together with the heat sensor this reduces false alarms.

Key features

Blue LED for small smoke particles
Optical + heat sensor
Enhanced false alarm management
Built-in loop isolator
EN 54-5 / EN 54-7

Technical data

Operating voltage	9 … 42 V DC
Quiescent current	approx. 50 µA
Alarm current	approx. 18 mA
Monitored area	max. 110 m²
Mounting height	max. 12 m
Air velocity	0 … 25.4 m/s
Standard	EN 54-7/-5 A2 /-17, CEA 4021
Sound level	max. 92 dB (A), +/- 2 db (A) @ 1m for DIN tone
Protection rating	IP43 (with base + option)
Operating temperature	-20 °C … 50 °C
Storage temperature	-25 °C … 75 °C
Humidity	< 95 % (non-condensing)
Material	ABS plastic
Colour	white, similar to RAL 9010
Dimensions	Ø 117 mm, height 49 mm (62 mm incl. base)
Weight	approx. 110 g
