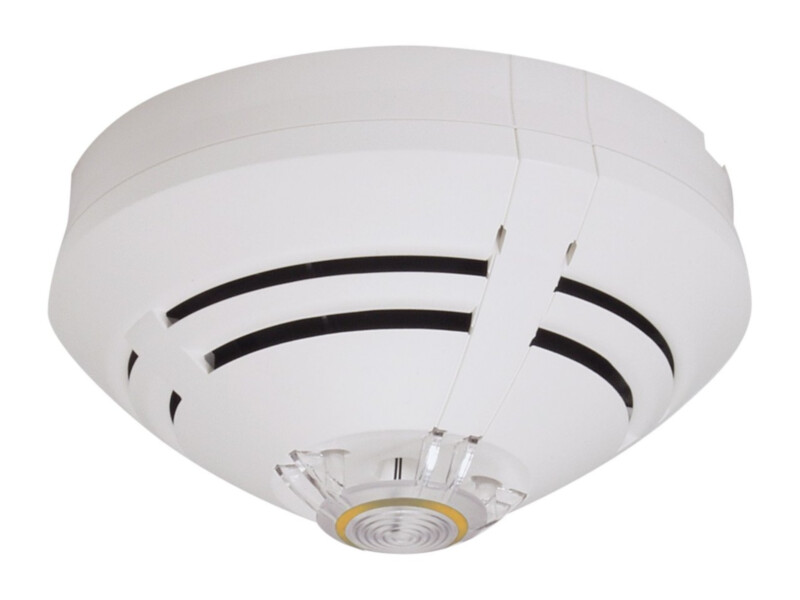

Esser IQ8Quad OTG multisensor detector (CO), addressable, with isolator, EN 54-5/7

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€137.00 €170

In stock 3

SKU

802473

Product files

Datasheet

Product details

Product parameters
IP kaitseaste	IP43

Toote kirjeldus

The OTG detector combines smoke, heat and gas (CO) sensors and detects fires from smouldering to open flame very early. It also raises an alarm at carbon monoxide levels that are dangerous to people. The CO sensor lasts about 5 years; testing it with test gas at installation is recommended.

Key features

Optical + heat + CO sensor
Alarm at dangerous CO levels (technical alarm 10–150 ppm)
Very early detection, few false alarms
Built-in loop isolator
CO sensor life approx. 5 years

Technical data

Operating voltage	8 … 42 V DC
Quiescent current	approx. 65 µA
Alarm current	approx. 18 mA
Monitored area	max. 110 m²
Mounting height	max. 12 m
Air velocity	0 … 25.4 m/s
Standard	EN 54-7/-5 A2 /-17, CEA 4021
CO alarm	approx. 100 ppm
Protection rating	IP43 (with base + option)
Operating temperature	-20 °C … 50 °C
Storage temperature	-25 °C … 75 °C
Humidity	< 95 % (non-condensing)
Material	ABS plastic
Colour	white, similar to RAL 9010
Dimensions	Ø 117 mm, height 49 mm (62 mm incl. base)
Weight	approx. 110 g
