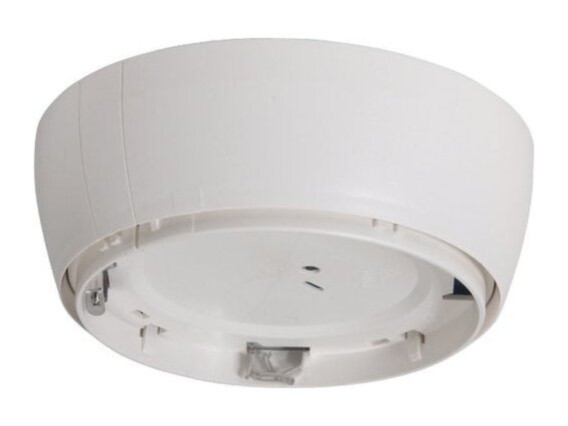

Esser IQ8Wireless detector base, EN 54-25

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€284.00 €352

Pre-order

SKU

805593.10

Product files

Datasheet

Toote kirjeldus

The IQ8Wireless base contains the radio module, and the detector is fitted onto it as usual. It connects IQ8Quad TM, TD, O, O²T and OTG detectors to the esserbus / esserbus-PLus loop via a wireless transponder or gateway. Up to 32 wireless bases can be assigned per transponder and up to 10 per gateway.

Key features

Fits detectors 802171, 802177, 802271, 803271, 802371, 803371, 802374, 803374, 802473
Each detector is individually identified at the panel
Regular functional check
Power: 4 x 3.6 V batteries
EN 54-18 / EN 54-25

Technical data

Operating voltage	4 x 3.6 V batteries
Current consumption	approx. 50 µA
Standard	EN 54-18:2005/-25:2008
Frequency band 1	433 MHz with 16 channels
Frequency band 2	868 MHz with 7 channels
Radio range indoors	max. 30 m
Radio range outdoors	max. 300 m
Battery life	approx. 3 years*
Data rate	19.2 Kbit/s
Protection rating	IP 42
Operating temperature	-5 °C … 55 °C
Storage temperature	-20 °C … 70 °C (w/o batteries); 15 °C … 35 °C (with batteries)
Humidity	< 95 % (non condensing)
Material	ABS-V0
Colour	white, similar to RAL 9010
Dimensions	Ø 135 mm, height 49 mm (with detector H: 88 mm)
Weight	approx. 315 g (incl. batteries)
