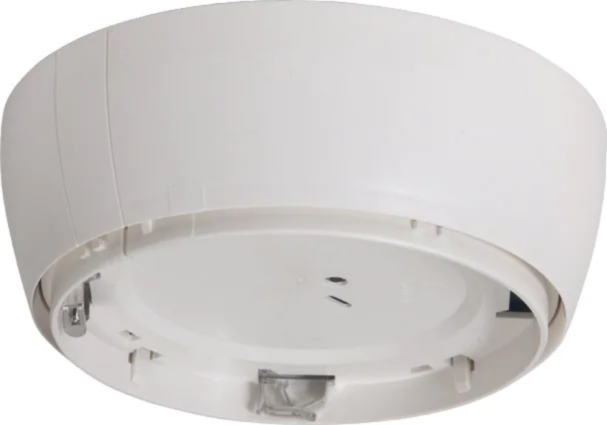

Esser IQ8Wireless gateway for devices, up to 10 devices, EN 54-25

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€445.00 €552

Pre-order

SKU

805594.10

Product files

Datasheet

Toote kirjeldus

The gateway is fitted between an existing IQ8 detector base and the detector. It adds up to 10 wireless detectors or addressable call points and up to 10 IQ8Alarm sounders or detectors with sounder to a running IQ8Control or FlexES Control system, with no new cabling.

Key features

Fitted between base and detector, no extra wiring
Up to 10 wireless bases or call point interfaces
Up to 10 sounders or detectors with sounder
Remote indicator can be connected
EN 54-17/-18/-25

Technical data

Operating voltage	8 … 42 V DC (via loop)
Current consumption	400 µA to max. 2.5 mA
Standard	EN 54-17:2005/-18:2005/-25:2008
Frequency band 1	433 MHz with 16 channels
Frequency band 2	868 MHz with 7 channels
Radio range indoors	max. 20 m
Radio range outdoors	max. 200 m
Battery life	approx. 3 years*
Data rate	19.2 Kbit/s
Protection rating	IP 42
Operating temperature	-5 °C … 55 °C
Storage temperature	-20 °C … 70 °C (w/o batteries); 15 °C … 35 °C (with batteries)
Humidity	< 95 % (non-condensing)
Material	ABS
Colour	white, similar to RAL 9010
Dimensions	Ø 135 mm, height 49 mm (with detector H: 88 mm)
Weight	approx. 265 g (incl. batteries)
