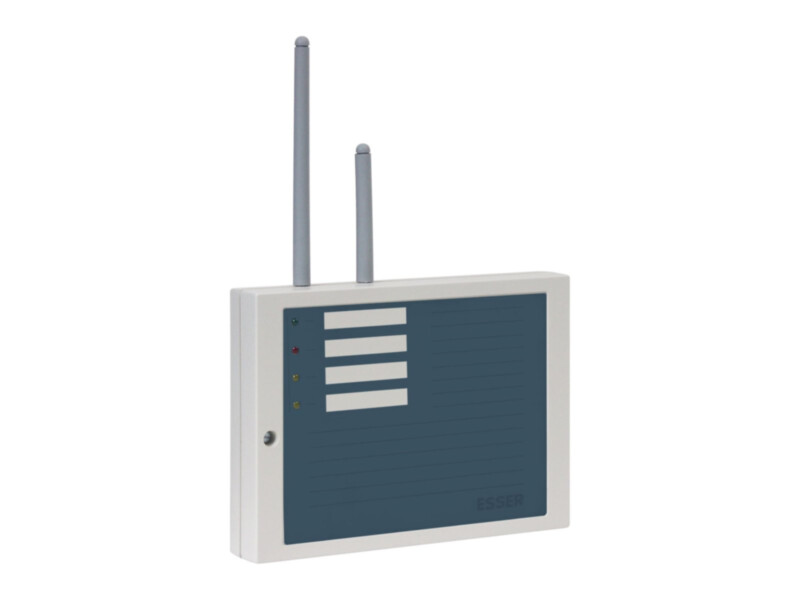

Esser IQ8Wireless transponder for devices, wall mount, up to 32 devices

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€647.00 €802

Pre-order

SKU

805595.10

Product files

Datasheet

Toote kirjeldus

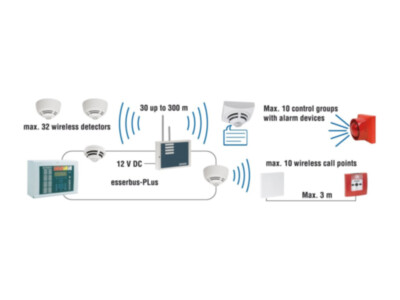

The wireless transponder connects up to 32 wireless devices to the esserbus / esserbus-PLus loop of IQ8Control and FlexES Control panels: IQ8Quad detectors on wireless bases and, via the wireless interface, IQ8MCP manual call points and IQ8Alarm sounders. Every wireless device is individually addressable at the panel.

Key features

Up to 32 wireless devices, up to 32 wireless bases
Up to 10 wireless interfaces for call points and 10 control groups for sounders
Devices can be assigned to up to 32 zones
Alarm and fault transmission to EN 54-2
EN 54-17/-18/-25

Technical data

Operating voltage	9 … 30 V DC (via loop)
Quiescent current	approx. 17 mA
Alarm current	approx. 18 mA
Standard	EN 54-17:2005/-18:2005/-25:2008
Frequency band 1	433 MHz with 16 channels
Frequency band 2	868 MHz with 7 channels
Radio range indoors	max. 30 m
Radio range outdoors	max. 300 m
Data rate	19.2 Kbit/s
Contact rating	30 V DC/1 A
Protection rating	IP 42
Operating temperature	-5 °C … 55 °C
Storage temperature	-10 °C … 60 °C
Humidity	< 95 % (non condensing)
Material	ASA + PC
Colour	white, similar to RAL 9010
Dimensions	200 × 280 × 39 mm (W × H × D) (with detector H: 88 mm)
Weight	approx. 250 g
