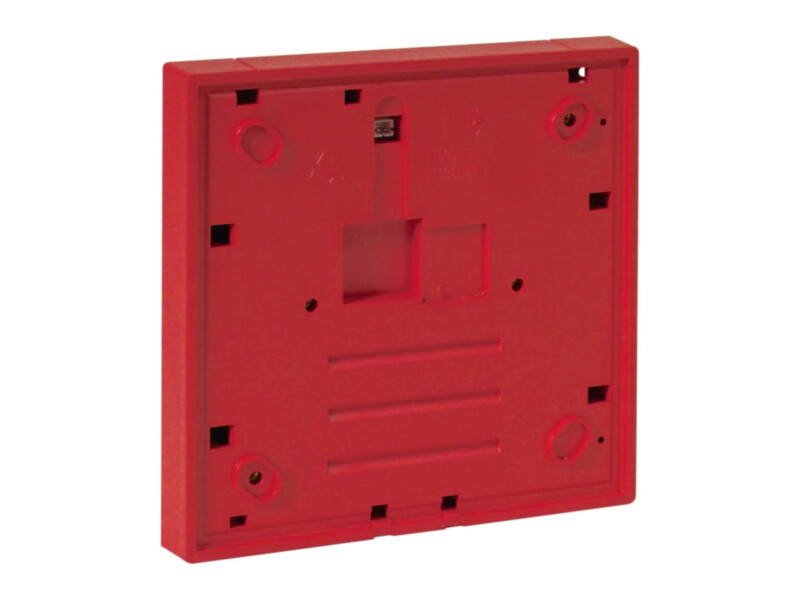

Esser IQ8Wireless universal interface without cover, red

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€575.00 €713

Pre-order

SKU

805601.10

Product files

Datasheet

Toote kirjeldus

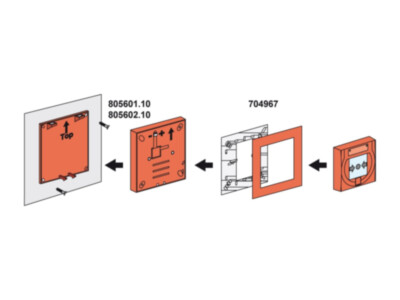

The interface connects an IQ8 call point (small or large) to the esserbus / esserbus-PLus loop via a wireless transponder or gateway. The device thus becomes an individually addressable loop device without cabling.

Key features

For call points 804905/804906, 804971, 804955
For IQ8Alarm sounders (with frame)
Power: 4 x 3.6 V batteries
Red

Technical data

Operating voltage	4 x 3.6 V batteries
Current consumption	approx. 30 µA
Standard	EN 54-18:2005/-25:2008
Frequency band 1	433 MHz with 16 channels
Frequency band 2	868 MHz with 7 channels
Radio range indoors	max. 30 m
Radio range outdoors	max. 300 m
Battery life	approx. 3 years*
Data rate	19.2 Kbit/s
Protection rating	IP 42
Operating temperature	-5 °C … 55 °C
Storage temperature	-20 °C … 70 °C (w/o batteries); 15 °C … 35 °C (with batteries)
Humidity	< 95 % (non-condensing)
Material	PC/ASA plastic
Colour	red, similar to RAL 3020
Dimensions	135 × 135 × 20 mm (W × H × D) (without attachment)
Weight	approx. 285 g (incl. batteries, without attachment)
