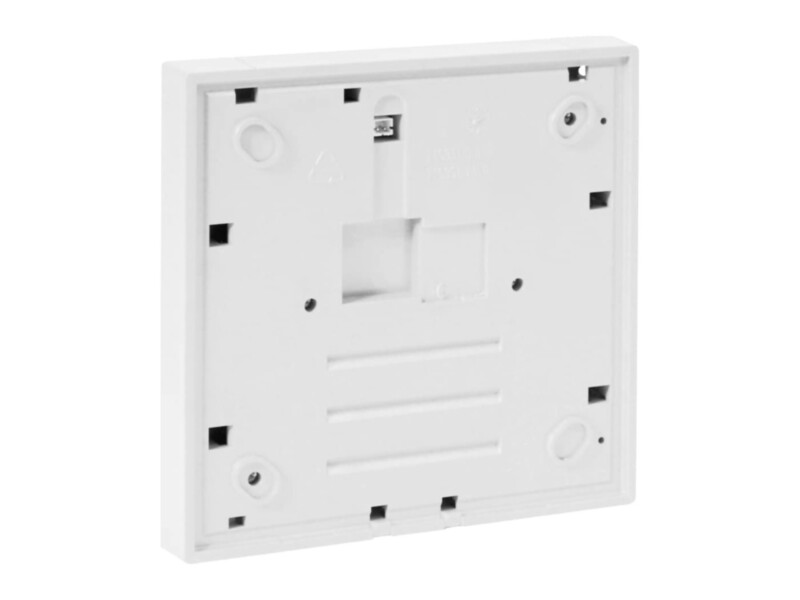

Esser IQ8Wireless universal interface without cover, white

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€575.00 €713

Pre-order

SKU

805602.10

Product files

Datasheet

Toote kirjeldus

White wireless universal interface that connects an IQ8 manual call point, IQ8Alarm sounder or IQ8Quad detector by radio to the esserbus loop via a wireless transponder or gateway. The panel identifies each device individually, checks its function regularly and signals a fault if the device is removed. It is powered by four 3.6 V batteries lasting about 3 years.

Key features

For call points 804905/804906, 804971, 804955
For IQ8Alarm sounders and IQ8Quad detectors (with frame)
Power: 4 x 3.6 V batteries
White

Technical data

Operating voltage	4 x 3.6 V batteries
Current consumption	approx. 30 µA
Standard	EN 54-18:2005/-25:2008
Frequency band 1	433 MHz with 16 channels
Frequency band 2	868 MHz with 7 channels
Radio range indoors	max. 30 m
Radio range outdoors	max. 300 m
Battery life	approx. 3 years*
Data rate	19.2 Kbit/s
Protection rating	IP 42
Operating temperature	-5 °C … 55 °C
Storage temperature	-20 °C … 70 °C (w/o batteries); 15 °C … 35 °C (with batteries)
Humidity	< 95 % (non-condensing)
Material	PC/ASA plastic
Colour	red, similar to RAL 3020
Dimensions	135 × 135 × 20 mm (W × H × D) (without attachment)
Weight	approx. 285 g (incl. batteries, without attachment)
