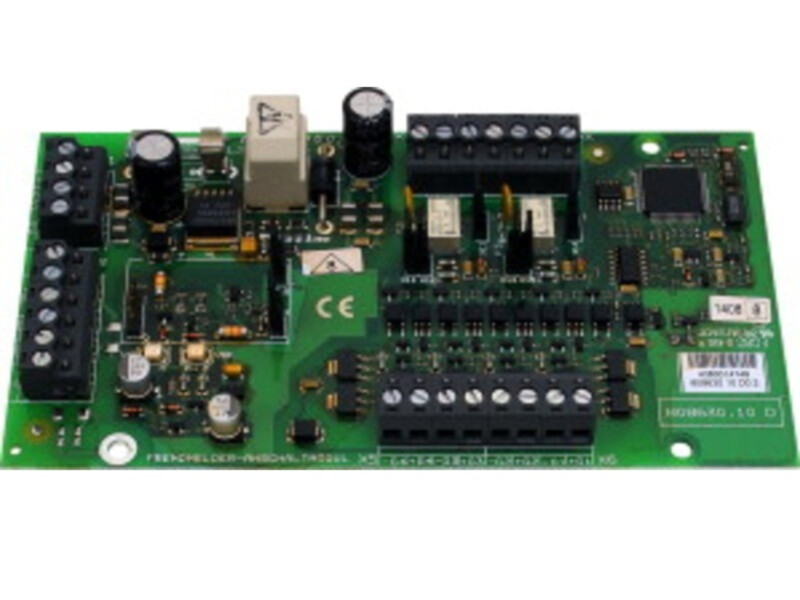

Esser RZT 8000 refurbishment zone transponder, 4 zones for third-party detectors

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€401.00 €497

Pre-order

SKU

808630.10

Product files

Datasheet

Toote kirjeldus

RZT 8000 is a stand-alone esserbus device for 8000, IQ8Control and FlexES Control panels. Other manufacturers' conventional detectors and call points connect to its four zone inputs; the zone voltage is set to 24 V by an internal DC/DC module. Compatibility must be checked individually in advance.

Key features

4 zones for third-party detectors
Only one loop address
Zone voltage 24 V (DC/DC module)
Up to 31 transponders per loop
Check compatibility in advance

Technical data

Operating voltage	10.5 … 15 V DC
Current consumption	max. 1.250 mA
Contact rating	max. 30 V DC/1 A or 48 V DC/0.5 A
Operating temperature	-10 °C … 50 °C
Storage temperature	-25 °C … 75 °C
Humidity	< 95 % (non-condensing)
Dimensions	150 × 82 × 20 mm (W × H × D)
Weight	approx. 150 g
