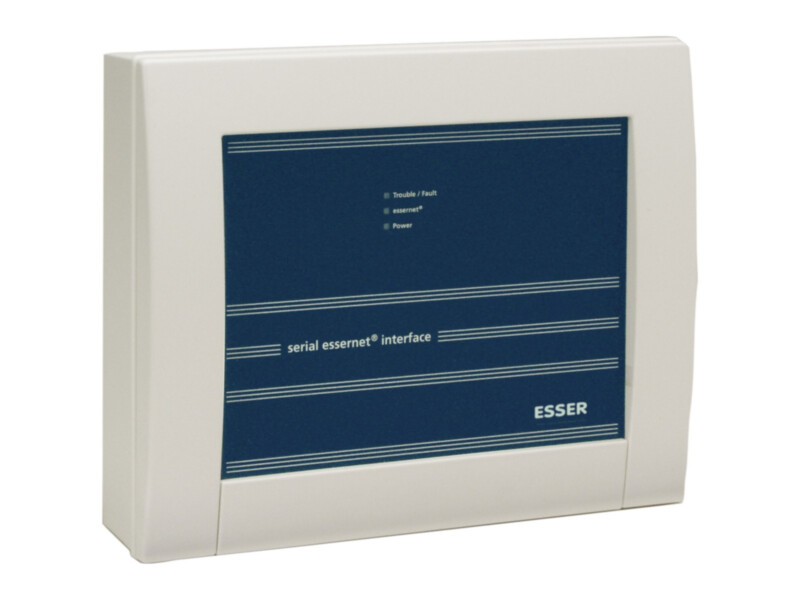

Esser SEI2 serial essernet interface, EDP protocol

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€1,323.00 €1,641

In stock 2

SKU

784850

Product files

Datasheet

Toote kirjeldus

SEI2 connects 800x, IQ8Control and FlexES Control panels to external systems using the ESSER data protocol EDP. The connection is via TTY or RS232/485; systems with two-way data can also control the panel remotely. With an essernet module, SEI2 joins an essernet network as a separate unit.

Key features

Connection via TTY or RS232/485
Two-way data and remote control
Can join an essernet network
essernet micromodule and interface module ordered separately
Supplied in a housing

Technical data

Operating voltage	10.5 … 30 V DC
Rated current	without essernet® module: approx. 30 mA @ 12 V DC approx. 20 mA @ 24 V DC with essernet® module: approx. 130 mA @ 12 V DC approx. 70 mA @ 24 V DC
Protection rating	IP 30
Operating temperature	-5 °C … 50 °C
Storage temperature	-10 °C … 50 °C
Material	ABS plastic, 10% glass fibre reinforced, V-0
Colour	gray, similar to Pantone 538
Dimensions	270 × 221 × 75 mm (W × H × D) incl. housing
