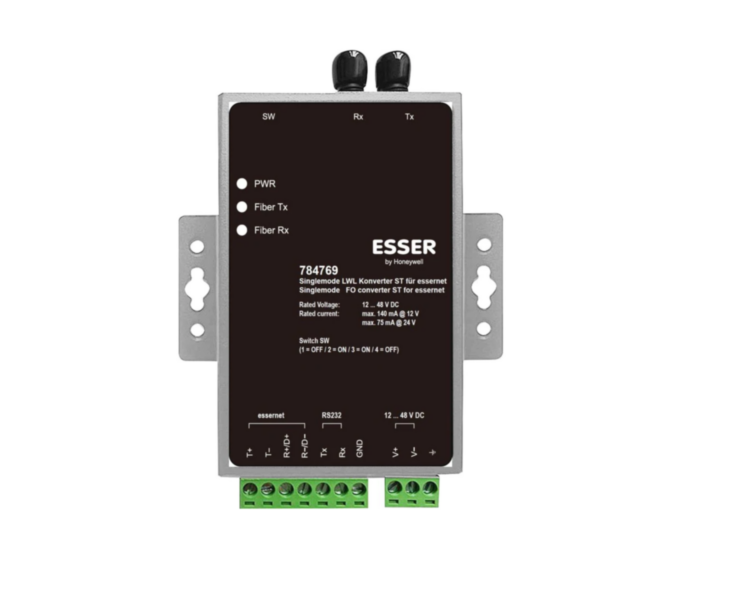

Esser single-mode FO converter ST, essernet, up to 30 km

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€3,258.00 €4,040

Pre-order

SKU

784769

Product files

Datasheet

Toote kirjeldus

To link panels over fibre in an essernet network, each panel needs an essernet module and at least one fibre optic converter. The converter is mounted on a DIN rail directly in the panel housing or cabinet, with no extra fixings.

Key features

Two single-mode fibres per network section
Fibre E9/125 or E10/125 µm, max attenuation 17 dB (~30 km)
Up to 16 links at 62.5 kBd or 31 links at 500 kBd
DIN rail mounting

Technical data

Operating voltage	9.5 … 48 V DC
Current consumption	approx. 140 mA
Protection rating	IP 20
Operating temperature	10 °C … 60 °C
Storage temperature	-20 °C … 75 °C
Material	Aluminium unpainted
Dimensions	67 × 100 × 22 mm (W × H × D)
Weight	approx. 320 g
