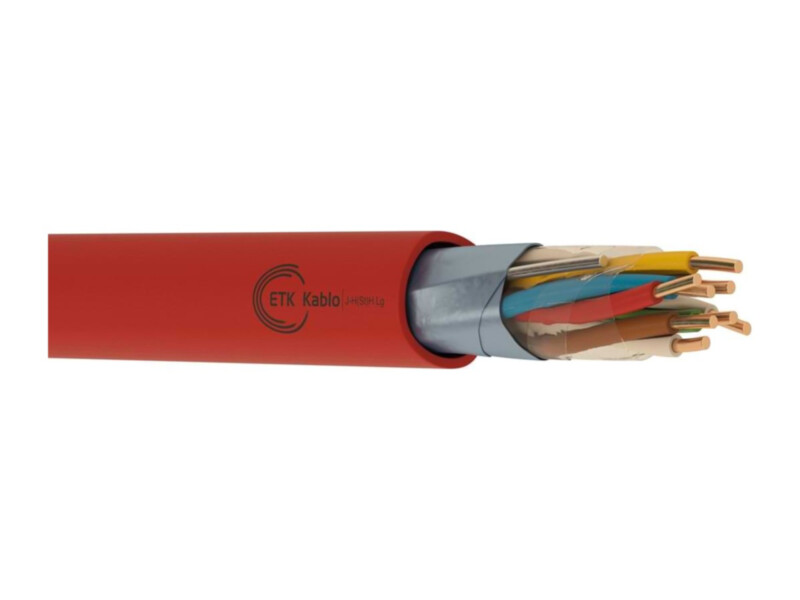

ETK J-H(St)H Lg fire alarm cable | 1x2x0.8 mm | red | halogen-free | Cca | 100 m

Skip to the beginning of the images gallery

€0.55 €1

In stock 2700

SKU

411422

Product files

Datasheet

Product details

Product parameters
Manufacturer	ETK Kablo

Toote kirjeldus

ETK J-H(St)H Lg is a halogen-free, flame-retardant screened cable for fire alarm, security, communication and sound systems in buildings. The solid copper conductors (class 1) have halogen-free insulation and are twisted in pairs; the overall screen is aluminium/polyester tape with a tinned copper drain wire. The UV-resistant halogen-free outer sheath is red (RAL 3000). In a fire it emits little smoke and no corrosive gases.

Key features

1 pair, conductor Ø 0.8 mm (class 1 copper)
Overall Al/PET screen + drain wire
Halogen-free, flame retardant
Red sheath RAL 3000
Cable Ø approx. 4.6 mm

Technical data

Construction	1 × 2 × 0,8 mm
Conductor	solid copper, class 1
Screen	Al/PET tape + tinned copper drain wire
Sheath	halogen-free, UV resistant, red RAL 3000
Cable diameter	≈ 4,6 mm
Conductor resistance	73,2 Ω/km (20 °C)
Voltage	operating 300 V, test 800 V
Weight	≈ 29 kg/km
Operating temperature	-30 … +70 °C
Fire tests	IEC 60332-1-2, IEC 60332-3-24, IEC 61034-2, IEC 60754-1/-2
Standard	DIN VDE 0815
