HAGO CP6-EM speaker/microphone | white | surface mount | 6 W / 8 Ω

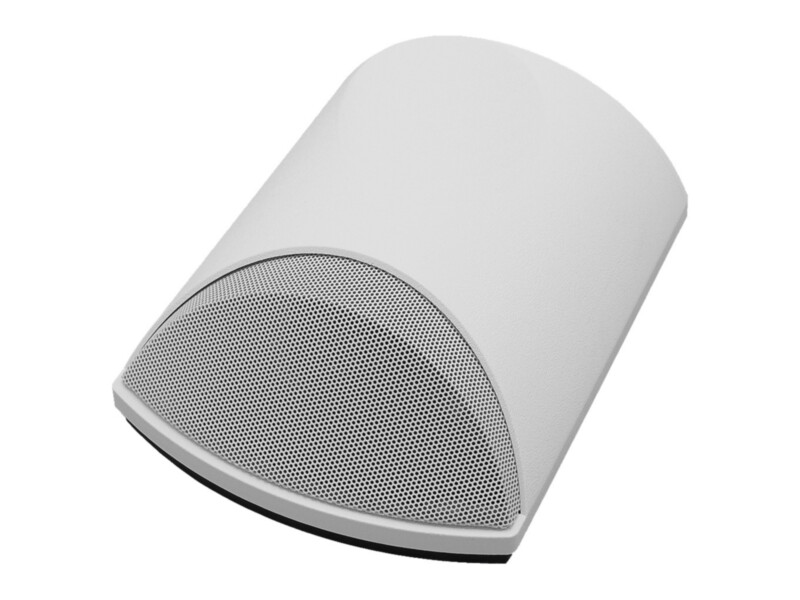

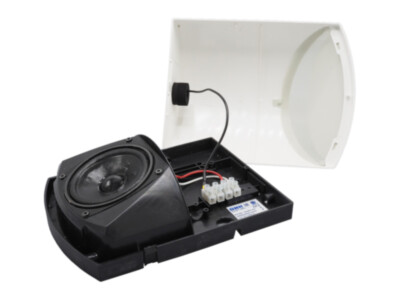

The HAGO CP6-EM is a surface-mounted loudspeaker with a built-in microphone for the customer side of the HAGO LKS25 counter intercom – one unit for both listening and speaking. The white ABS housing (RAL 9010) is fixed to a wall or counter through three Ø 4.6 mm holes. The loudspeaker has a maximum power of 6 W and an impedance of 8 Ω; the 10 mm electret microphone with interference capacitor is fitted in the housing in a cellular rubber collar. Wiring connects to a plastic terminal block. Dimensions 195 × 150 × 70 mm, weight 450 g.

Key features

• Loudspeaker and electret microphone in one housing
• Loudspeaker max. 6 W / 8 Ω
• White ABS housing (RAL 9010), surface mount
• Connection on a plastic terminal block
• 195 × 150 × 70 mm, 450 g
