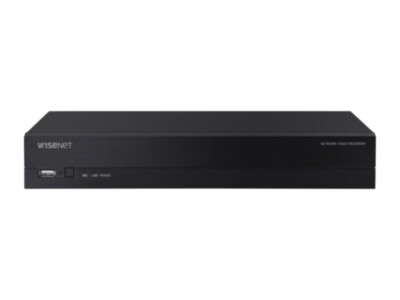

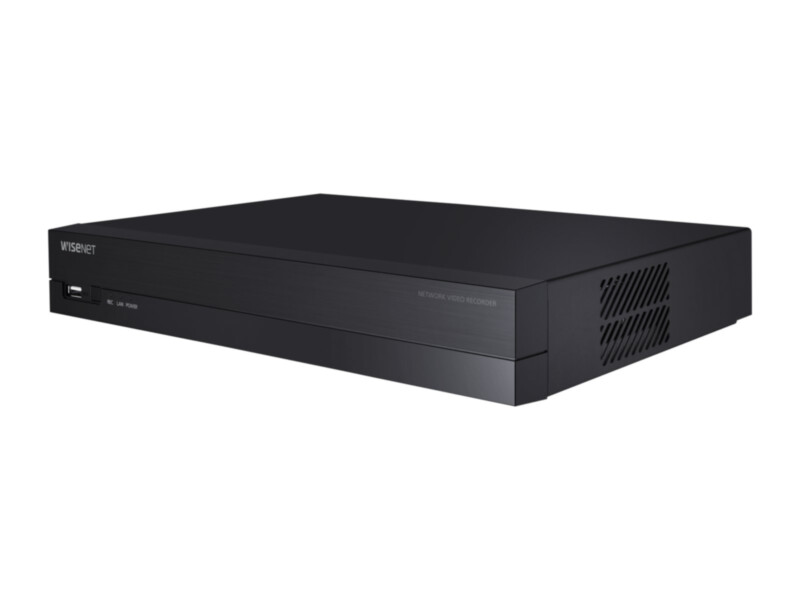

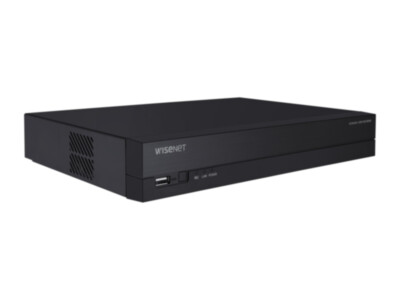

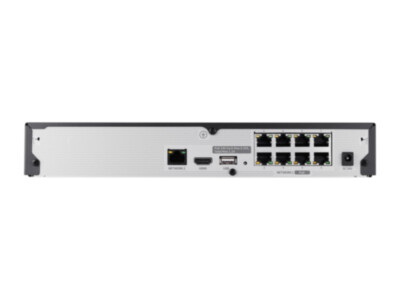

Hanwha ARN-810S network video recorder (NVR), 8 channels, 1x HDD, 8x PoE

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€470.00 €583

Pre-order

SKU

ARN-810S

Product files

Datasheet

Product details

Product parameters
Manufacturer	Hanwha Vision
Length	300
Width	48
Height	239

Toote kirjeldus

Hanwha ARN-810S is a 8-channel network video recorder (NVR) for IP cameras with a built-in 8-port PoE switch and 1 HDD bay. A network video recorder receives the IP cameras' video streams, records them on hard disks and lets you watch live and recorded video on a local monitor, a computer or a smartphone.

The built-in PoE switch powers the cameras over the same network cable, so a smaller system needs no separate switch or power supplies.

Key features

8 IP camera channels, cameras up to 8 MP
Recording bandwidth up to 60 Mbps
1 SATA HDD bay, up to 6TB in total
8 PoE ports, total PoE budget 65W
Monitor output: HDMI
Recording H.265, H.264, MJPEG
Remote viewing with Wisenet Viewer and the Wisenet mobile app

Technical data

Channels	8
Camera resolution	up to 8 MP
Recording bandwidth	60 Mbit/s
Hard disks	1x SATA, max 6TB
PoE ports	8 (65W)
Monitor output	HDMI
Chassis	1U
Power	54VDC/1.67A
Weight	1.05 kg
