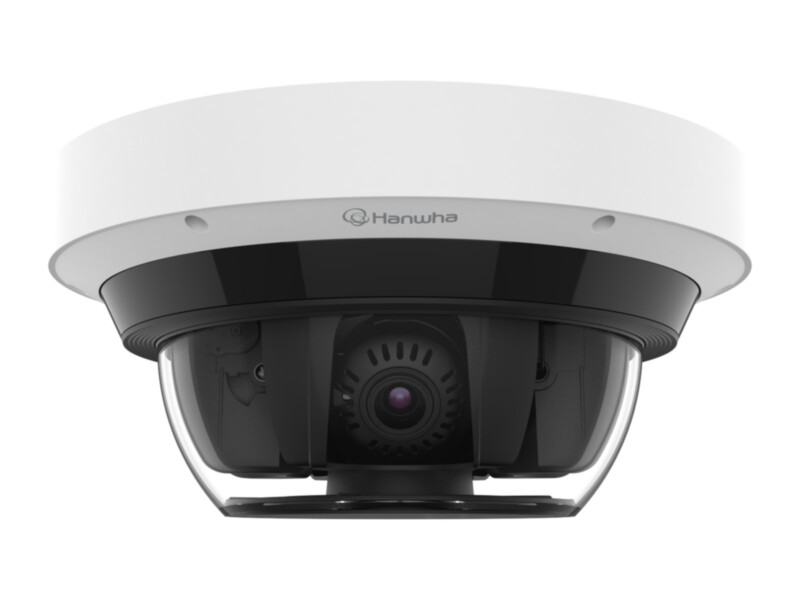

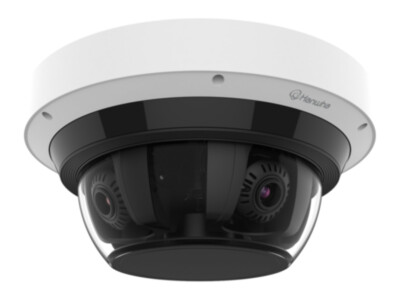

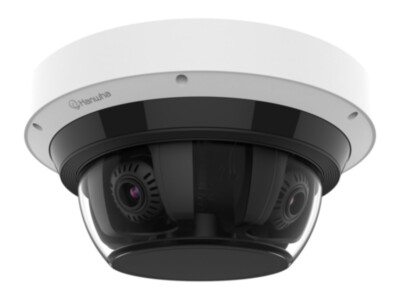

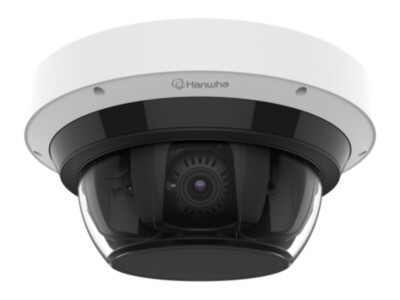

Hanwha PNM-C32083RQZ multi-sensor camera 4x 8MP, 4.38–9.33 mm motorised varifocal, IR 25 m, IP66

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€3,900.00 €4,836

Pre-order

SKU

PNM-C32083RQZ

Product files

Datasheet

Product details

Product parameters
Manufacturer	Hanwha Vision
Length	313
Width	313
Height	146

Toote kirjeldus

Hanwha PNM-C32083RQZ is a 4x 8 MP multi-sensor camera with a 4. The Wisenet P series is Hanwha Vision's premium line of high-resolution and multi-directional cameras for large sites.

A multi-sensor camera combines several individually aimed cameras in one housing, so a single device covers several directions with one mounting point and one network connection.

Key features

4x 8 MP resolution (3840x2160), up to 15 fps
Motorised varifocal lens 4.38–9.33 mm – zoom and focus are adjusted remotely
IR illumination up to 25 m – a clear image in total darkness
WDR 120 dB – a balanced image against backlight and in high-contrast scenes
AI-based video analytics: detects and classifies people, faces, vehicles and licence plates
Video compression H.265/H.264, WiseStreamⅢ – lower bandwidth and storage
IP66 / IK10 – weather- and vandal-resistant
Power: PoE+(IEEE802.3at, Class4), PoE++(IEEE802.3bt type3, Class6)
microSD card slot up to 512GB (on-board recording)
Audio and alarm inputs/outputs

Technical data

Sensor	1/1.8" CMOS
Resolution	3840x2160
Frame rate	15 fps
Lens	4.38–9.33 mm
Field of view (H)	113°–47°
Min. illumination	0.07 lx (colour) / 0.007 lx (B/W)
IR range	25 m
WDR	120 dB
Detection distance (DORI)	50.8 m
Video compression	H.265/H.264
Memory card	microSD up to 512 GB
Power	PoE+(IEEE802.3at, Class4), PoE++(IEEE802.3bt type3, Class6)
Power consumption	Max. 41 W, typical 22 W
Protection	IP66 / IK10
Operating temperature	−40…+55 °C
Dimensions	ø312.7x145.9 mm
Weight	4400 g
