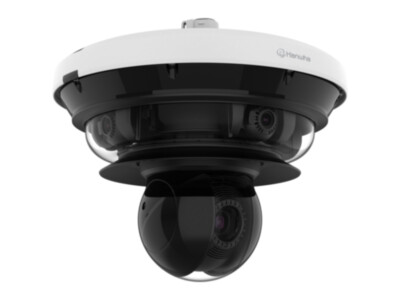

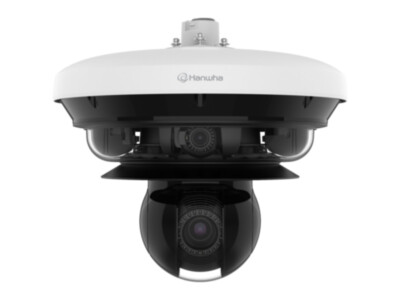

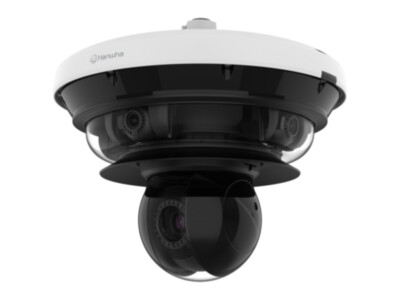

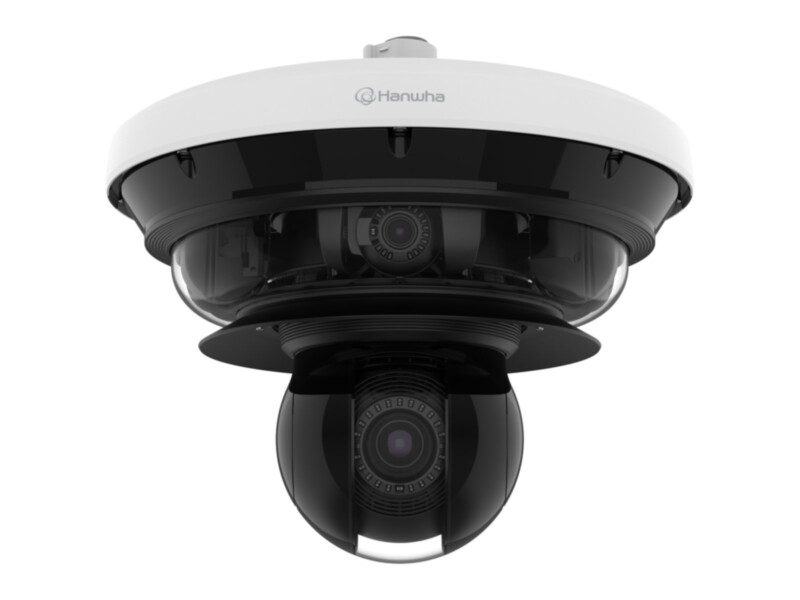

Hanwha PNM-C34404RQPZ multi-sensor camera 4x 8MP + PTZ 2MP 40x, 3.3–5.7 mm motorised varifocal, IR 20 m, IP66

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€8,660.00 €10,738

Pre-order

SKU

PNM-C34404RQPZ

Product files

Datasheet

Product details

Product parameters
Manufacturer	Hanwha Vision
Length	380
Width	380
Height	302

Toote kirjeldus

Hanwha PNM-C34404RQPZ is a 4x 8 MP + PTZ 2 MP 40x multi-sensor camera with a 3. The Wisenet P series is Hanwha Vision's premium line of high-resolution and multi-directional cameras for large sites.

A multi-sensor camera combines several individually aimed cameras in one housing, so a single device covers several directions with one mounting point and one network connection.

Key features

4x 8 MP + PTZ 2 MP 40x resolution (3840x2160), up to 15 fps
Motorised varifocal lens 3.3–5.7 mm – zoom and focus are adjusted remotely
IR illumination up to 20 m – a clear image in total darkness
WDR 120 dB – a balanced image against backlight and in high-contrast scenes
AI-based video analytics: detects and classifies people, faces, vehicles and licence plates
Video compression H.265/H.264, WiseStreamⅢ – lower bandwidth and storage
IP66 / IK10 – weather- and vandal-resistant
Power: PoE++(IEEE802.3bt type4, Class8)
microSD card slot up to 512GB (on-board recording)
Audio in and out

Technical data

Sensor	1/2.8" CMOS
Resolution	3840x2160
Frame rate	15 fps
Lens	3.3–5.7 mm
Field of view (H)	109°–56° / 65.66°–1.88°
Min. illumination	0.1 / 0.05 lx (colour) / 0.01 / 0.005 lx (B/W)
IR range	20 m
WDR	120 dB
Detection distance (DORI)	54.8 m / 59.5 m
Video compression	H.265/H.264
Memory card	microSD up to 512 GB
Power	PoE++(IEEE802.3bt type4, Class8)
Power consumption	Max. 64 W, typical 45 W
Protection	IP66 / IK10
Operating temperature	−40…+50 °C
Dimensions	ø379.8x301.9 mm
Weight	7900 g
