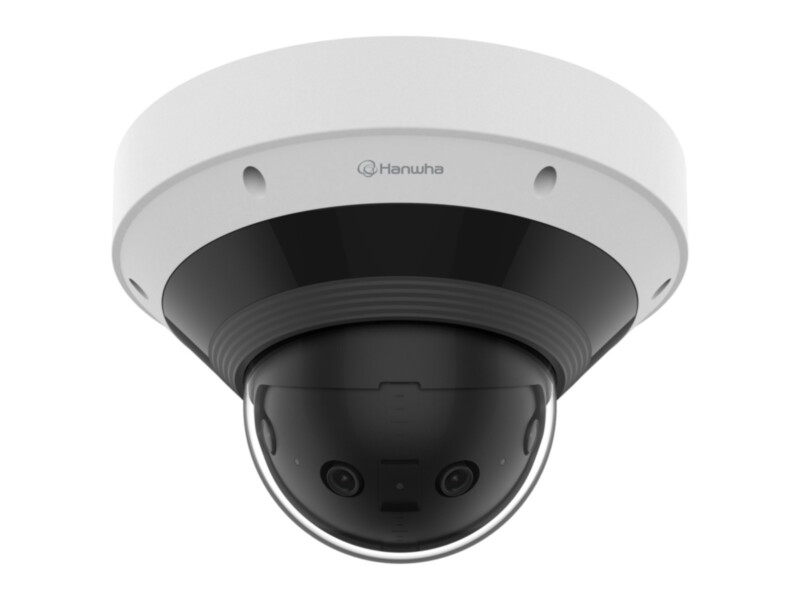

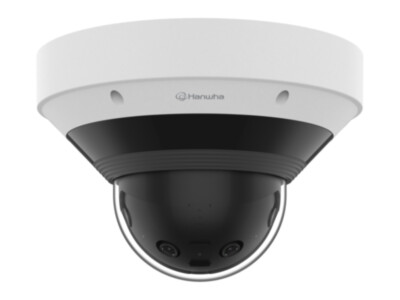

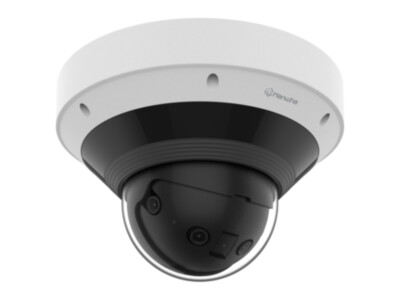

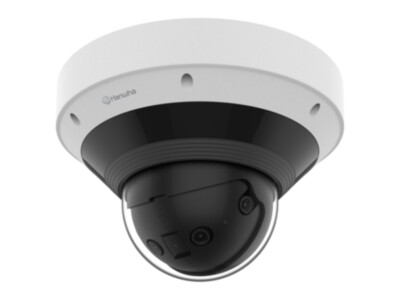

Hanwha PNM-C9022RV panoramic camera 8MP, 2.8 mm, IR 20 m, IP66

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€2,350.00 €2,914

Pre-order

SKU

PNM-C9022RV

Product files

Datasheet

Product details

Product parameters
Location	Outdoor
Lens	Fixed
Resolution	8 MP (4K)
Camera type	Multi-sensor
Manufacturer	Hanwha Vision
Length	253
Width	253
Height	170

Toote kirjeldus

Hanwha PNM-C9022RV is an 8 MP panoramic camera with a 2. The Wisenet P series is Hanwha Vision's premium line of high-resolution and multi-directional cameras for large sites.

A panoramic camera stitches the images of several sensors into one wide panoramic view, so a single camera covers a wide area without blind spots and is easy to follow.

Key features

8 MP resolution (5120x1568), up to 20 fps
Fixed 2.8 mm lens, horizontal field of view 209°
IR illumination up to 20 m – a clear image in total darkness
WDR 120 dB – a balanced image against backlight and in high-contrast scenes
AI-based video analytics: detects and classifies people and vehicles
Video compression H.265/H.264, WiseStreamⅢ – lower bandwidth and storage
IP66 / IK10 – weather- and vandal-resistant
Power: PoE+(IEEE802.3at, Class4), 12VDC
microSD card slot up to 512GB (on-board recording)
Audio and alarm inputs/outputs

Technical data

Sensor	1/2.8" CMOS
Resolution	5120x1568
Frame rate	20 fps
Lens	2.8 mm
Field of view (H)	209°
Min. illumination	0.1 lx (colour) / 0.01 lx (B/W)
IR range	20 m
WDR	120 dB
Detection distance (DORI)	52.2 m
Video compression	H.265/H.264
Memory card	microSD up to 512 GB
Power	PoE+(IEEE802.3at, Class4), 12VDC
Power consumption	Max. 24.5 W, typical 11.3 W
Protection	IP66 / IK10
Operating temperature	−40…+55 °C
Dimensions	ø253x170 mm
Weight	2900 g
