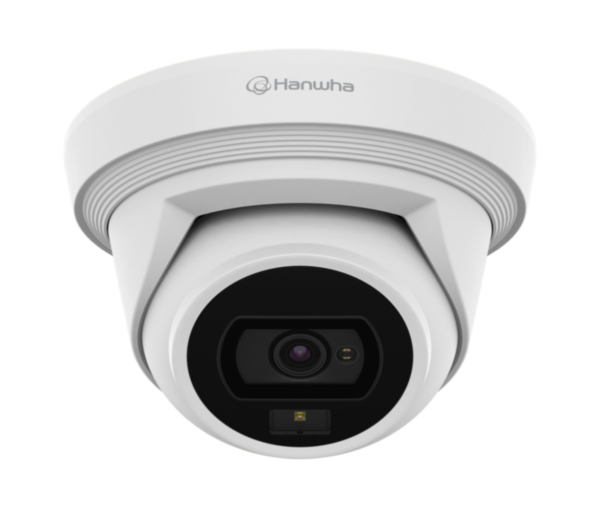

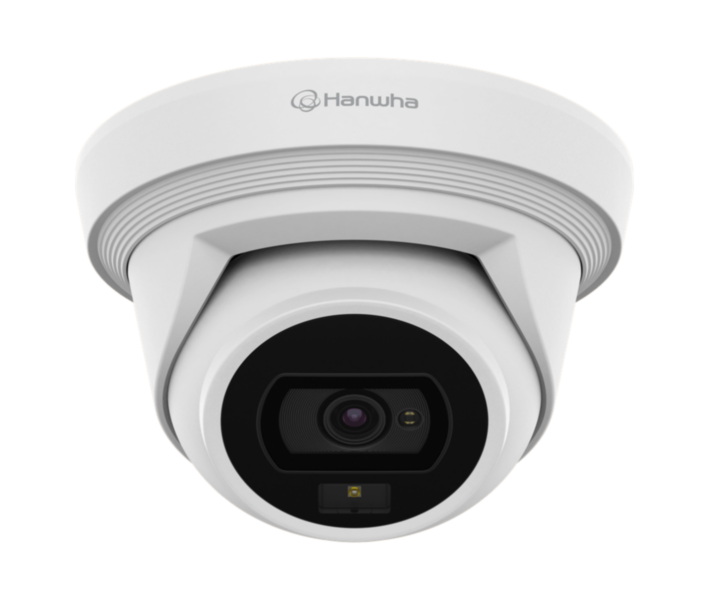

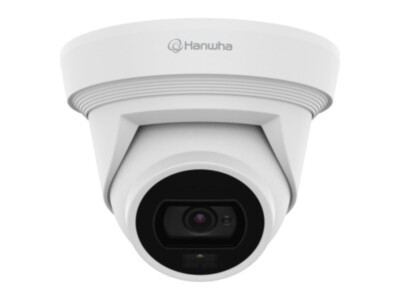

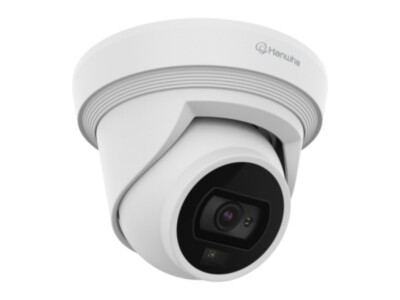

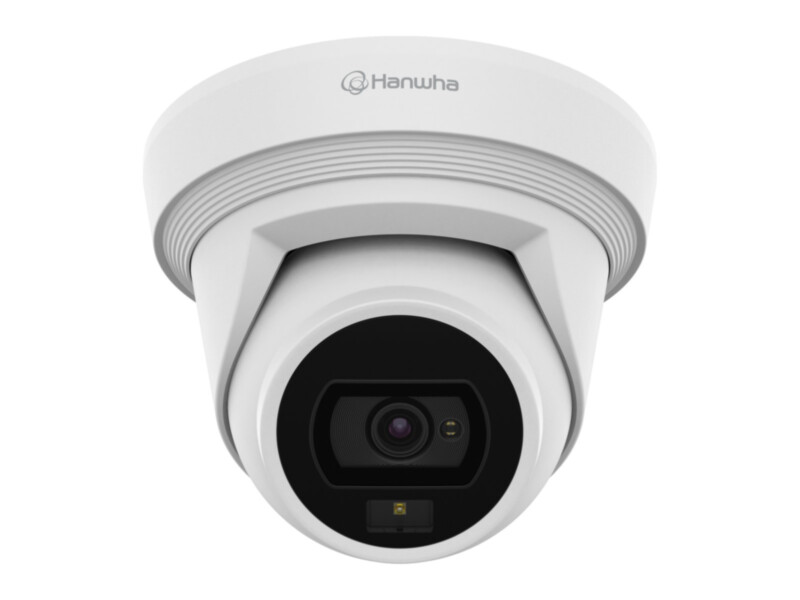

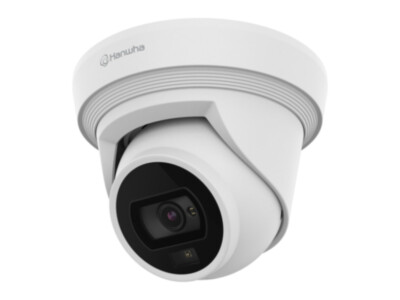

Hanwha QNE-C9013RL turret camera 8MP, 3 mm, IR 30 m, IP67

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€820.00 €1,017

Pre-order

SKU

QNE-C9013RL

Product files

Datasheet

Product details

Product parameters
Manufacturer	Hanwha Vision
Length	140
Width	140
Height	100

Toote kirjeldus

Hanwha QNE-C9013RL is an 8 MP turret camera with a 3 mm lens, IR illumination up to 30 m. The Wisenet Q series is Hanwha Vision's mid-range camera line for most commercial and office video surveillance systems.

A turret camera is the alternative to a dome: the lens and IR illuminators sit without a dome bubble, so there are no reflections from the bubble and night images stay clear. The view is easy to aim during installation.

Key features

8 MP resolution (3840x2160), up to 30 fps
Fixed 3 mm lens, horizontal field of view 108°
IR illumination up to 30 m – a clear image in total darkness
WDR 120 dB – a balanced image against backlight and in high-contrast scenes
AI-based video analytics: detects and classifies people and vehicles
Video compression H.265/H.264, WiseStreamⅢ – lower bandwidth and storage
IP66/IP67 / IK10 – weather- and vandal-resistant
Power: PoE (IEEE 802.3af, Class3)
microSD card slot up to 256GB (on-board recording)

Technical data

Sensor	1/2.8" CMOS
Resolution	3840x2160
Frame rate	30 fps
Lens	3 mm
Field of view (H)	108°
Min. illumination	0.034 lx (colour) / 0.0034 lx (B/W)
IR range	30 m
WDR	120 dB
Detection distance (DORI)	55.8 m
Video compression	H.265/H.264
Memory card	microSD up to 256 GB
Power	PoE (IEEE 802.3af, Class3)
Power consumption	Max. 10.0 W, typical 4.5 W
Protection	IP66/IP67 / IK10
Operating temperature	−40…+60 °C
Dimensions	ø140.0x99.6 mm
Weight	790 g
