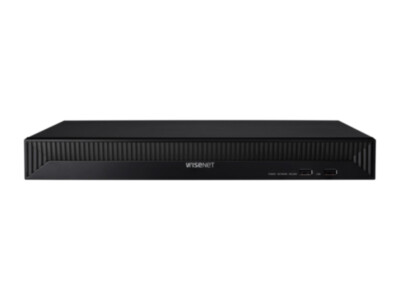

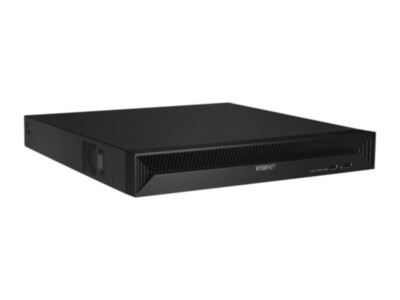

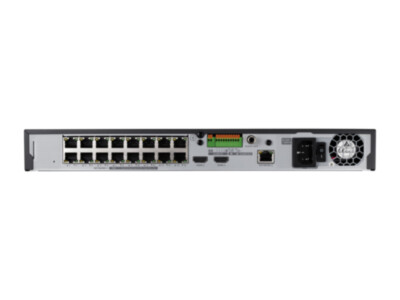

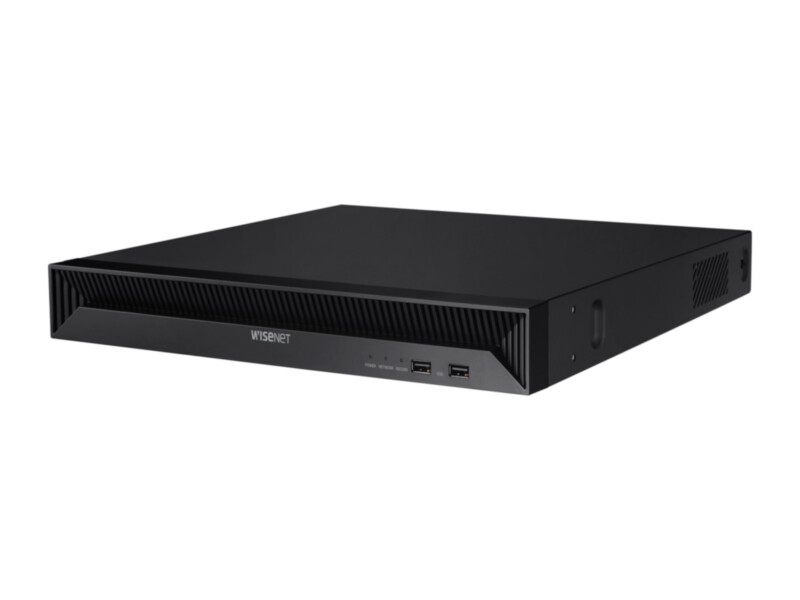

Hanwha QRN-1630S network video recorder (NVR), 16 channels, 2x HDD, 16x PoE

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€1,085.00 €1,345

Pre-order

SKU

QRN-1630S

Product files

Datasheet

Product details

Product parameters
Manufacturer	Hanwha Vision
Length	370
Width	51
Height	320

Toote kirjeldus

Hanwha QRN-1630S is a 16-channel network video recorder (NVR) for IP cameras with a built-in 16-port PoE switch and 2 HDD bays. A network video recorder receives the IP cameras' video streams, records them on hard disks and lets you watch live and recorded video on a local monitor, a computer or a smartphone.

The built-in PoE switch powers the cameras over the same network cable, so a smaller system needs no separate switch or power supplies.

Key features

16 IP camera channels, cameras up to 8 MP
Recording bandwidth up to 128 Mbps
2 SATA HDD bays, up to 20TB in total
16 PoE ports, total PoE budget 130W
Monitor output: HDMI1: 3840x2160(30Hz), HDMI2: 1920x1080(60Hz)
Recording H.265, H.264, MJPEG
Remote viewing with Wisenet Viewer and the Wisenet mobile app

Technical data

Channels	16
Camera resolution	up to 8 MP
Recording bandwidth	128 Mbit/s
Hard disks	2x SATA, max 20TB
PoE ports	16 (130W)
Monitor output	HDMI1: 3840x2160(30Hz), HDMI2: 1920x1080(60Hz)
Chassis	1U
Power	100–240 VAC ±10%, 50/60Hz
Weight	2.87 kg
