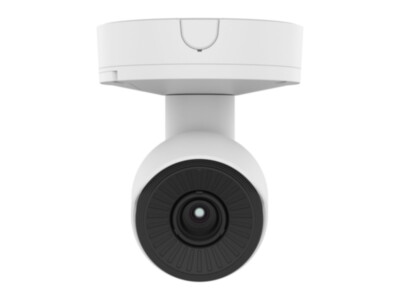

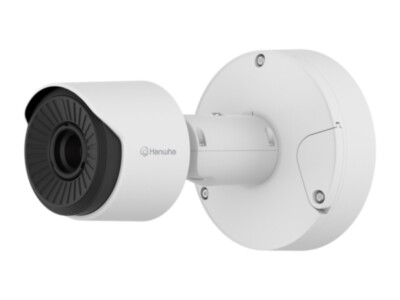

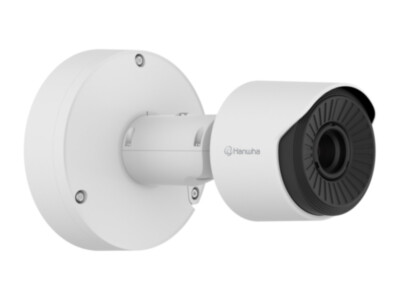

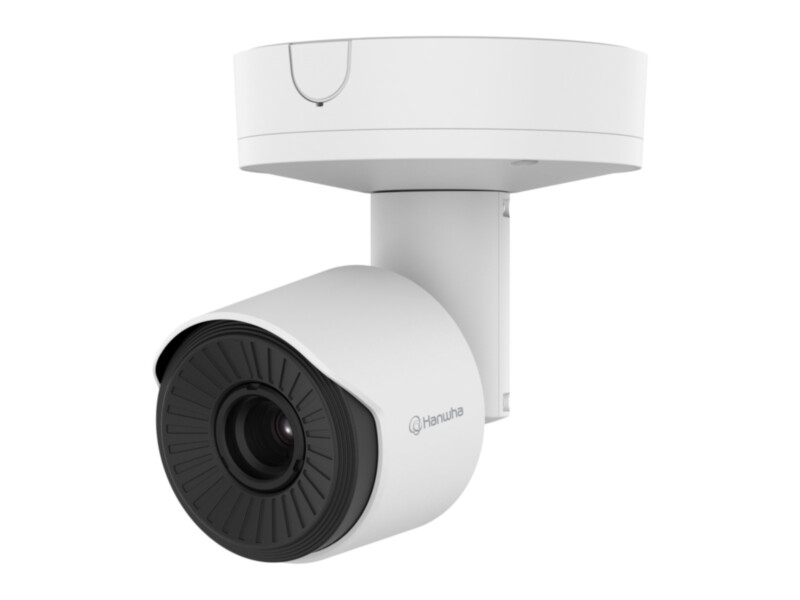

Hanwha TNO-C3040T thermal camera QVGA, 13 mm, IP67

Hanwha TNO-C3040T is a QVGA thermal camera with a 13 mm lens. The Wisenet T series gathers Hanwha Vision's special-purpose cameras, such as thermal and mobile cameras.

A thermal camera builds its image from heat radiation rather than visible light, so it sees in total darkness, smoke and light fog and suits perimeter and wide-area protection.

Key features

• QVGA resolution (768x576), up to 30 fps
• Fixed 13 mm lens, horizontal field of view 28.5°
• AI-based video analytics: detects and classifies people and vehicles
• Video compression H.265/H.264, WiseStreamⅡ – lower bandwidth and storage
• IP66/IP67 / IK10 – weather- and vandal-resistant
• Power: PoE (IEEE 802.3af, Class3), 12VDC
• microSD card slot up to 1TB (on-board recording)
• Audio and alarm inputs/outputs

Technical data
