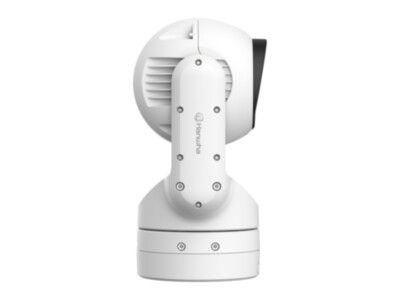

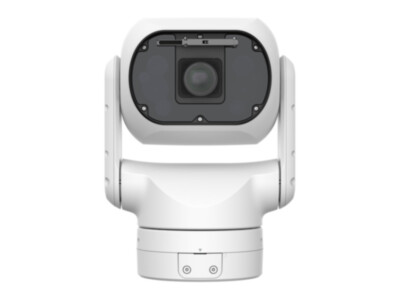

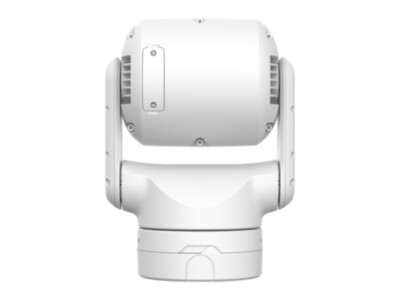

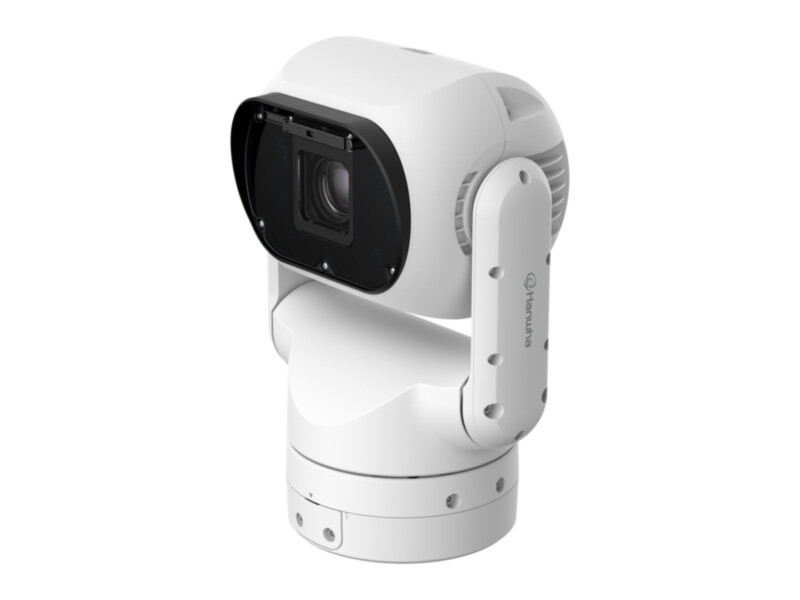

Hanwha TNP-A6550RW PTZ camera 2MP, IR 600 m, IP68

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€6,774.00 €8,400

Pre-order

SKU

TNP-A6550RW

Product files

Datasheet

Product details

Product parameters
Manufacturer	Hanwha Vision
Length	293
Width	206
Height	400

Toote kirjeldus

Hanwha TNP-A6550RW is a 2 MP PTZ camera with IR illumination up to 600 m. The Wisenet T series gathers Hanwha Vision's special-purpose cameras, such as thermal and mobile cameras.

A PTZ camera can be panned, tilted and zoomed remotely. One camera covers a large area, and the operator can zoom in on a point of interest or let the camera run through preset positions.

Key features

2 MP resolution (1920x1080), up to 60 fps
x optical zoom, pan 360° Endless
IR illumination up to 600 m – a clear image in total darkness
WDR 120 dB – a balanced image against backlight and in high-contrast scenes
AI-based video analytics: detects and classifies people, faces, vehicles and licence plates
Video compression H.265/H.264 – lower bandwidth and storage
IP66/IP68 / IK10 – weather- and vandal-resistant
Power: PoE++(IEEE802.3bt type4, Class8)
microSD card slot up to 1TB (on-board recording)
Audio in and out

Technical data

Sensor	1/2.8" CMOS
Resolution	1920x1080
Frame rate	60 fps
Lens	4.75–261.4 mm
Field of view (H)	58.6˚(Wide)~1.23˚(Tele)
Min. illumination	0.02Lux(F1.6, 1/30sec) lx (colour) / 0.002 lux (1/30sec,F1.6), 0Lux(IR LED On) lx (B/W)
IR range	600 m
WDR	120 dB
Detection distance (DORI)	68.4 m
Video compression	H.265/H.264
Memory card	microSD up to 1 TB
Power	PoE++(IEEE802.3bt type4, Class8)
Power consumption	Max. 71 W, typical 28.3 W
Protection	IP66/IP68 / IK10
Operating temperature	−50…+60 °C
Dimensions	Upright Normal/Inverted : 293.4(W)x205.6(D)x399.9(H)mm Upright Canted : 293.4(W)x301.9(D)x363.6.9(H)mm
Weight	10.4 kg
