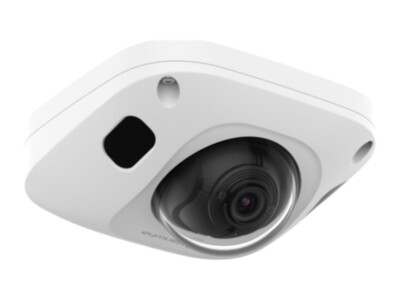

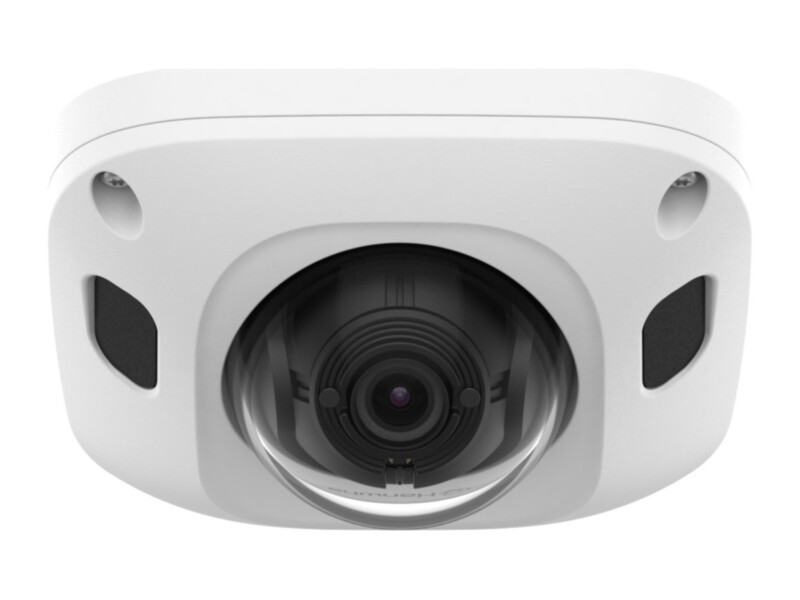

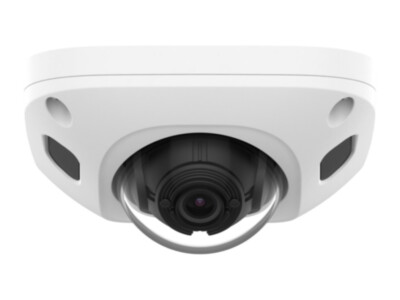

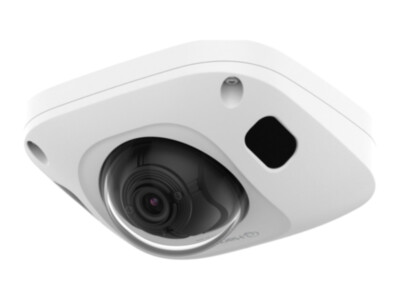

Hanwha TNV-C8014RM mobile camera 5MP, 3 mm, IR 30 m, IP66

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€889.00 €1,102

Pre-order

SKU

TNV-C8014RM

Product files

Datasheet

Product details

Product parameters
Manufacturer	Hanwha Vision
Length	106
Width	105
Height	55

Toote kirjeldus

Hanwha TNV-C8014RM is a 5 MP mobile camera with a 3 mm lens, IR illumination up to 30 m. The Wisenet T series gathers Hanwha Vision's special-purpose cameras, such as thermal and mobile cameras.

A mobile camera is made for installation in vehicles, where it has to withstand vibration and fit a compact space.

Key features

5 MP resolution (2592x1944), up to 30 fps
Fixed 3 mm lens, horizontal field of view 100°
IR illumination up to 30 m – a clear image in total darkness
WDR 120 dB – a balanced image against backlight and in high-contrast scenes
AI-based video analytics: detects and classifies people and vehicles
Video compression H.265/H.264, WiseStreamⅢ – lower bandwidth and storage
IP66 / IK10 – weather- and vandal-resistant
Power: PoE (IEEE 802.3af, Class3)
microSD card slot up to 256GB (on-board recording)
Audio in and out

Technical data

Sensor	1/2.8" CMOS
Resolution	2592x1944
Frame rate	30 fps
Lens	3 mm
Field of view (H)	100°
Min. illumination	0.03 lx (colour) / 0.003 lx (B/W)
IR range	30 m
WDR	120 dB
Detection distance (DORI)	43.5 m
Video compression	H.265/H.264
Memory card	microSD up to 256 GB
Power	PoE (IEEE 802.3af, Class3)
Power consumption	Max. 7.2 W, typical 4.2 W
Protection	IP66 / IK10
Operating temperature	−40…+55 °C
Dimensions	106x105x55 mm
Weight	466 g(1.03 Ib)
