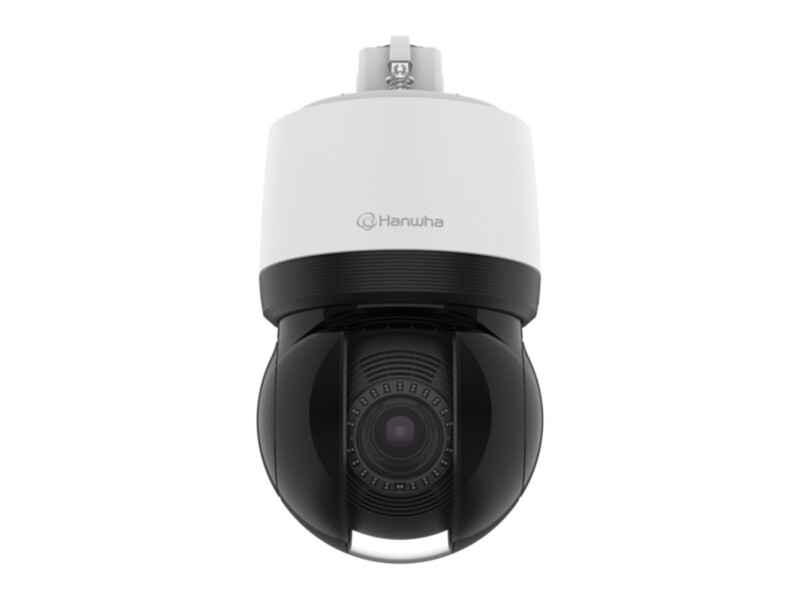

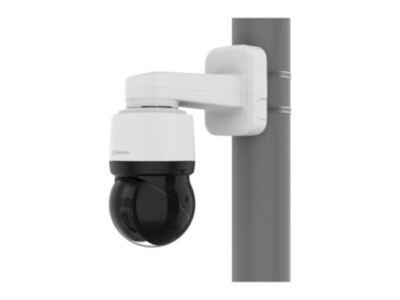

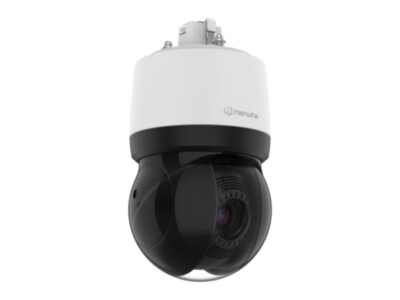

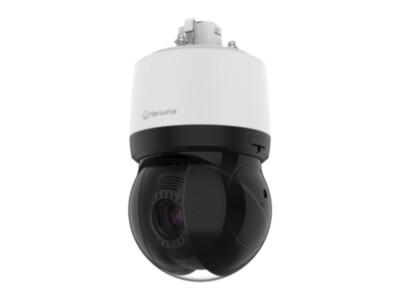

Hanwha XNP-C6403 PTZ camera 2MP, 40x zoom, IP66

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€3,869.00 €4,798

Pre-order

SKU

XNP-C6403

Product files

Datasheet

Product details

Product parameters
Manufacturer	Hanwha Vision
Length	158
Width	158
Height	293

Toote kirjeldus

Hanwha XNP-C6403 is a 2 MP PTZ camera with 40x optical zoom. The Wisenet X series is Hanwha Vision's premium camera line for demanding sites where image quality matters in difficult lighting.

A PTZ camera can be panned, tilted and zoomed remotely. One camera covers a large area, and the operator can zoom in on a point of interest or let the camera run through preset positions.

Key features

2 MP resolution (1920x1080), up to 60 fps
40x optical zoom, pan 360° Endless
WDR 150 dB – a balanced image against backlight and in high-contrast scenes
AI-based video analytics: detects and classifies people, faces, vehicles and licence plates
Video compression H.265/H.264, WiseStreamⅢ – lower bandwidth and storage
IP66 / IK10 – weather- and vandal-resistant
Power: PoE+(IEEE802.3at, Class4)
microSD card slot up to 512GB (on-board recording)
Audio in and out

Technical data

Sensor	1/2.8" CMOS
Resolution	1920x1080
Frame rate	60 fps
Lens	4.25–170 mm
Optical zoom	40x
Field of view (H)	65.66°–1.88°
Min. illumination	0.05 lx (colour) / 0.005 lx (B/W)
WDR	150 dB
Detection distance (DORI)	59.5 m
Video compression	H.265/H.264
Memory card	microSD up to 512 GB
Power	PoE+(IEEE802.3at, Class4)
Power consumption	Max. 25.5 W, Typical 24 W
Protection	IP66 / IK10
Operating temperature	−40…+50 °C
Dimensions	ø158x293.3 mm
Weight	3200 g
