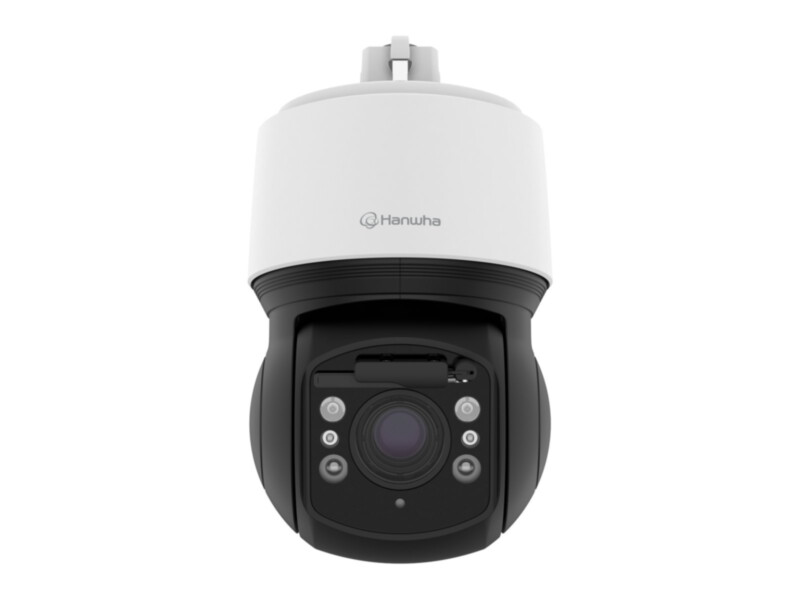

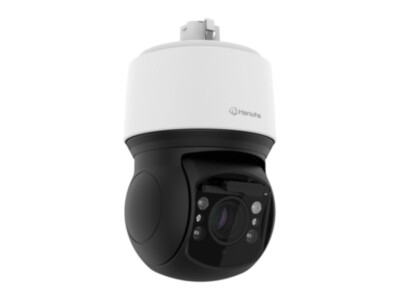

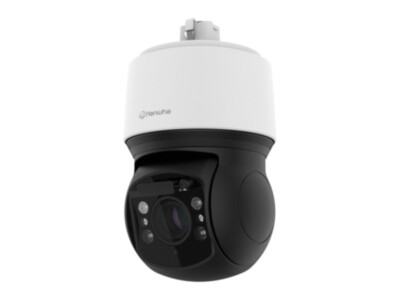

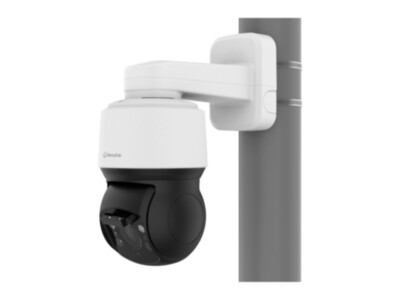

Hanwha XNP-C9303RW PTZ camera 8MP, 30x zoom, IR 200 m, IP66

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€5,500.00 €6,820

Pre-order

SKU

XNP-C9303RW

Product files

Datasheet

Product details

Product parameters
Manufacturer	Hanwha Vision
Length	185
Width	185
Height	319

Toote kirjeldus

Hanwha XNP-C9303RW is an 8 MP PTZ camera with 30x optical zoom, IR illumination up to 200 m. The Wisenet X series is Hanwha Vision's premium camera line for demanding sites where image quality matters in difficult lighting.

A PTZ camera can be panned, tilted and zoomed remotely. One camera covers a large area, and the operator can zoom in on a point of interest or let the camera run through preset positions.

Key features

8 MP resolution (3840x2160), up to 30 fps
30x optical zoom, pan 360° Endless
IR illumination up to 200 m – a clear image in total darkness
WDR 120 dB – a balanced image against backlight and in high-contrast scenes
AI-based video analytics: detects and classifies people, faces, vehicles and licence plates
Video compression H.265/H.264, WiseStreamⅢ – lower bandwidth and storage
IP66 / IK10 – weather- and vandal-resistant
Power: PoE++(IEEE802.3bt type3, Class6)
microSD card slot up to 512GB (on-board recording)
Audio in and out

Technical data

Sensor	1/2.8" CMOS
Resolution	3840x2160
Frame rate	30 fps
Lens	5–150 mm
Optical zoom	30x
Field of view (H)	57.42°–2.19°
Min. illumination	0.1 lx (colour) / 0.01 lx (B/W)
IR range	200 m
WDR	120 dB
Detection distance (DORI)	140.2 m
Video compression	H.265/H.264
Memory card	microSD up to 512 GB
Power	PoE++(IEEE802.3bt type3, Class6)
Power consumption	Max. 46 W, Typical 26 W
Protection	IP66 / IK10
Operating temperature	−40…+55 °C
Dimensions	ø184.9x318.8 mm
Weight	5600 g
