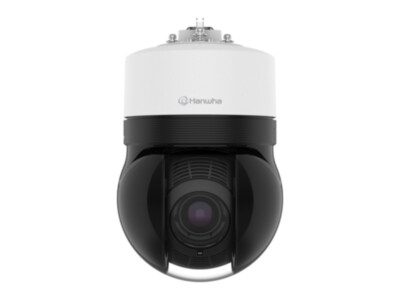

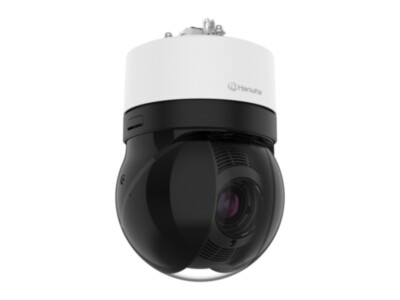

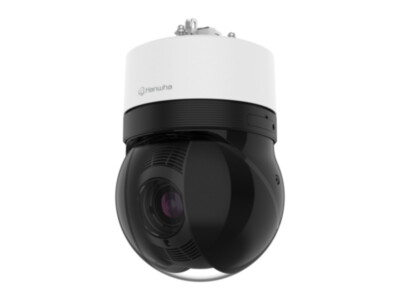

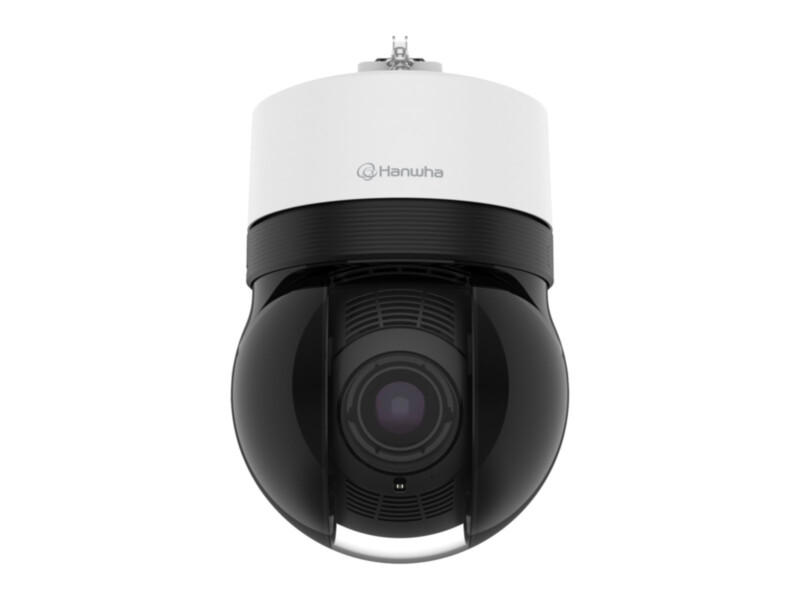

Hanwha XNP-C9310R PTZ camera 8MP, 31x zoom, IR 250 m, IP67

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€5,500.00 €6,820

Pre-order

SKU

XNP-C9310R

Product files

Datasheet

Product details

Product parameters
Location	Outdoor
Lens	Optical zoom (PTZ)
Resolution	8 MP (4K)
Camera type	PTZ
Manufacturer	Hanwha Vision
Length	188
Width	188
Height	265

Toote kirjeldus

Hanwha XNP-C9310R is an 8 MP PTZ camera with 31x optical zoom, IR illumination up to 250 m. The Wisenet X series is Hanwha Vision's premium camera line for demanding sites where image quality matters in difficult lighting.

A PTZ camera can be panned, tilted and zoomed remotely. One camera covers a large area, and the operator can zoom in on a point of interest or let the camera run through preset positions.

Key features

8 MP resolution (3840x2160), up to 30 fps
31x optical zoom, pan 360° Endless
IR illumination up to 250 m – a clear image in total darkness
WDR 120 dB – a balanced image against backlight and in high-contrast scenes
AI-based video analytics: detects and classifies people, faces, vehicles and licence plates
Video compression H.265/H.264, WiseStreamⅢ – lower bandwidth and storage
IP66/IP67 / IK10 – weather- and vandal-resistant
Power: PoE++(IEEE802.3bt type4, Class8)
microSD card slot up to 512GB (on-board recording)
Audio in and out

Technical data

Sensor	1/1.8" CMOS
Resolution	3840x2160
Frame rate	30 fps
Lens	6.91–214.7 mm
Optical zoom	31x
Field of view (H)	60.6°–2.59°
Min. illumination	0.06 lx (colour) / 0.006 lx (B/W)
IR range	250 m
WDR	120 dB
Detection distance (DORI)	131.4 m
Video compression	H.265/H.264
Memory card	microSD up to 512 GB
Power	PoE++(IEEE802.3bt type4, Class8)
Power consumption	Max. 62 W, typical 23 W
Protection	IP66/IP67 / IK10
Operating temperature	−50…+55 °C
Dimensions	ø188x264.9 mm
Weight	4400 g
