Hanwha XNV-A8016R dome camera 5MP, 3 mm, vandal-resistant, IR 25 m, IP66

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€1,150.00 €1,426

Pre-order

SKU

XNV-A8016R

Product files

Datasheet

Product details

Product parameters
Manufacturer	Hanwha Vision
Length	120
Width	120
Height	66

Toote kirjeldus

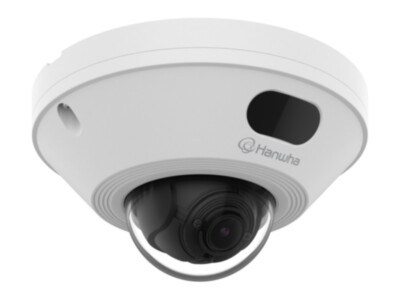

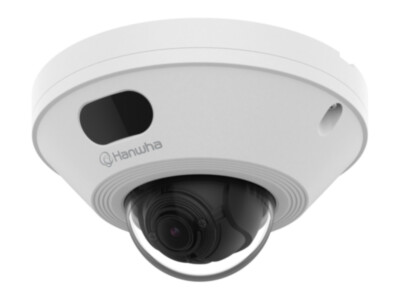

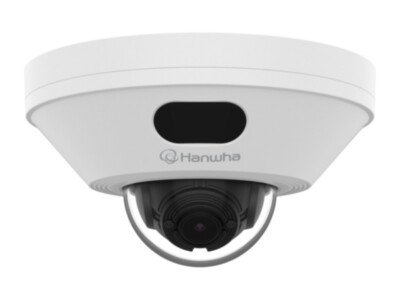

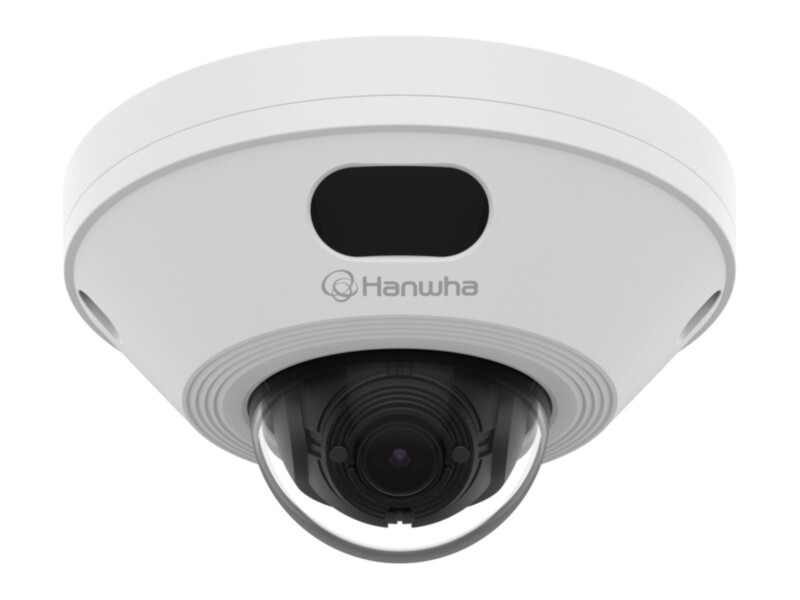

Hanwha XNV-A8016R is a 5 MP vandal-resistant dome camera with a 3 mm lens, IR illumination up to 25 m. The Wisenet X series is Hanwha Vision's premium camera line for demanding sites where image quality matters in difficult lighting.

A dome camera mounts on a ceiling or wall. The dome protects the lens and does not reveal where the camera is looking, which suits indoor areas and, with a vandal-resistant housing, outdoor sites as well.

Key features

5 MP resolution (2560x1920), up to 30 fps
Fixed 3 mm lens, horizontal field of view 100°
IR illumination up to 25 m – a clear image in total darkness
WDR 120 dB – a balanced image against backlight and in high-contrast scenes
AI-based video analytics: detects and classifies people, faces, vehicles and licence plates
Video compression H.265/H.264 – lower bandwidth and storage
IP66 / IK10 – weather- and vandal-resistant
Power: PoE (IEEE 802.3af, Class3)
microSD card slot up to 1TB (on-board recording)
Audio in and out

Technical data

Sensor	1/2.8" CMOS
Resolution	2560x1920
Frame rate	30 fps
Lens	3 mm
Field of view (H)	100°
Min. illumination	0.06 lx (colour) / 0.006 lx (B/W)
IR range	25 m
WDR	120 dB
Detection distance (DORI)	43.5 m
Video compression	H.265/H.264
Memory card	microSD up to 1 TB
Power	PoE (IEEE 802.3af, Class3)
Power consumption	Max. 7.9 W, typical 6.2 W
Protection	IP66 / IK10
Operating temperature	−40…+55 °C
Dimensions	ø120x65.5 mm
Weight	555 g(1.22b)
