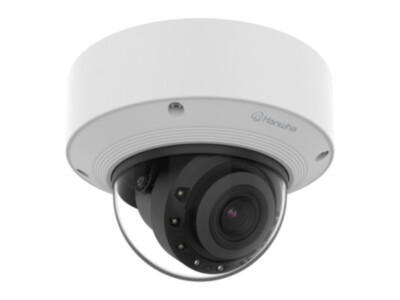

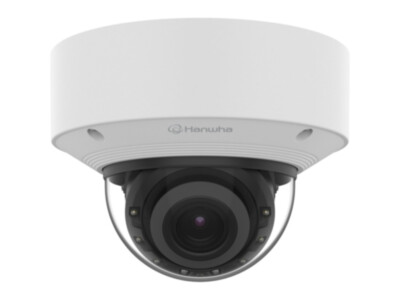

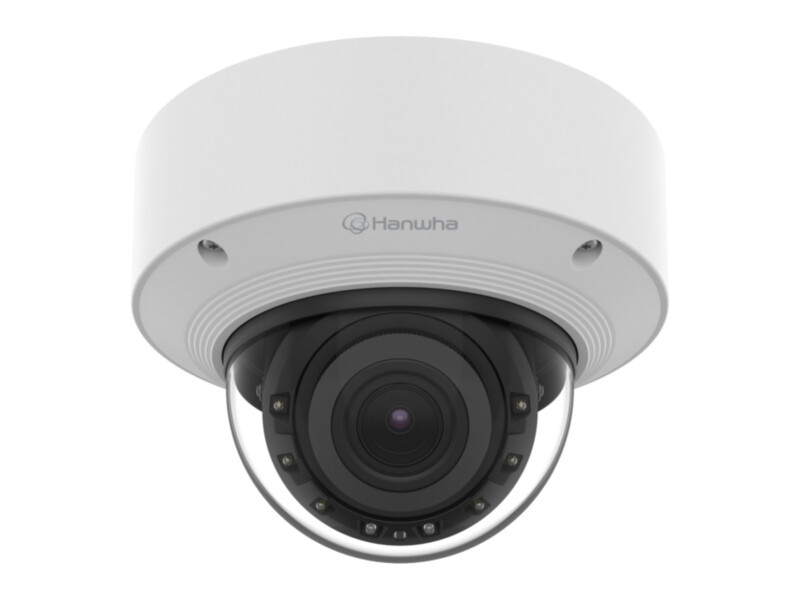

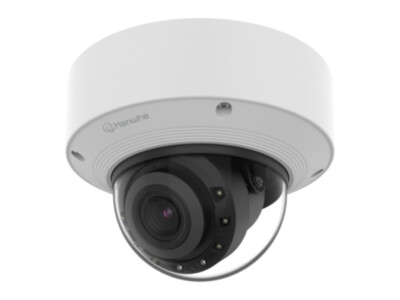

Hanwha XNV-A9084R dome camera 8MP, 4.4–9.3 mm motorised varifocal, vandal-resistant, IR 50 m, IP67

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€1,650.00 €2,046

Pre-order

SKU

XNV-A9084R

Product files

Datasheet

Product details

Product parameters
Manufacturer	Hanwha Vision
Length	160
Width	160
Height	118

Toote kirjeldus

Hanwha XNV-A9084R is an 8 MP vandal-resistant dome camera with a 4. The Wisenet X series is Hanwha Vision's premium camera line for demanding sites where image quality matters in difficult lighting.

A dome camera mounts on a ceiling or wall. The dome protects the lens and does not reveal where the camera is looking, which suits indoor areas and, with a vandal-resistant housing, outdoor sites as well.

Key features

8 MP resolution (3840x2160), up to 30 fps
Motorised varifocal lens 4.4–9.3 mm – zoom and focus are adjusted remotely
IR illumination up to 50 m – a clear image in total darkness
WDR 120 dB – a balanced image against backlight and in high-contrast scenes
AI-based video analytics: detects and classifies people, faces, vehicles and licence plates
Video compression H.265/H.264 – lower bandwidth and storage
IP66/IP67 / IK10 – weather- and vandal-resistant
Power: PoE (IEEE 802.3af, Class3)
microSD card slot up to 1TB (on-board recording)
Audio and alarm inputs/outputs

Technical data

Sensor	1/1.8" CMOS
Resolution	3840x2160
Frame rate	30 fps
Lens	4.4–9.3 mm
Field of view (H)	113°–47°
Min. illumination	0.04 lx (colour) / 0.004 lx (B/W)
IR range	50 m
WDR	120 dB
Detection distance (DORI)	50.8 m
Video compression	H.265/H.264
Memory card	microSD up to 1 TB
Power	PoE (IEEE 802.3af, Class3)
Power consumption	Max. 11.2 W, typical 8.4 W
Protection	IP66/IP67 / IK10
Operating temperature	−40…+55 °C
Dimensions	ø160x118 mm
Weight	1220 g
