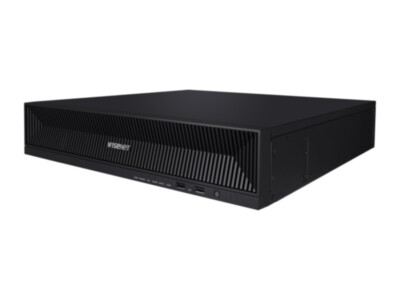

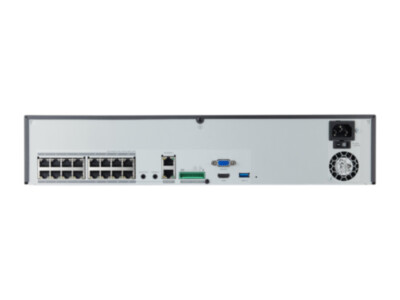

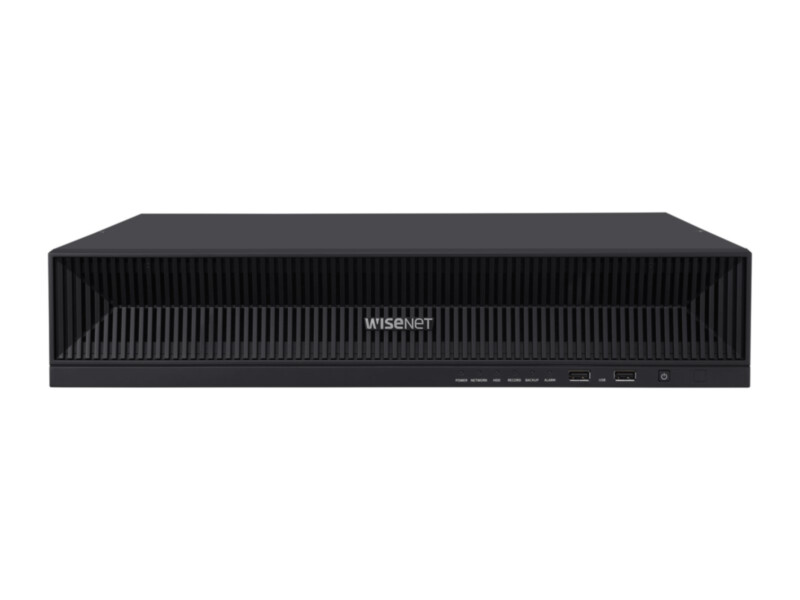

Hanwha XRN-1620SB1 network video recorder (NVR), 16 channels, 4x HDD, 16x PoE

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€2,021.00 €2,506

Pre-order

SKU

XRN-1620SB1

Product files

Datasheet

Product details

Product parameters
Manufacturer	Hanwha Vision
Length	440
Width	90
Height	428

Toote kirjeldus

Hanwha XRN-1620SB1 is a 16-channel network video recorder (NVR) for IP cameras with a built-in 16-port PoE switch and 4 HDD bays. A network video recorder receives the IP cameras' video streams, records them on hard disks and lets you watch live and recorded video on a local monitor, a computer or a smartphone.

The built-in PoE switch powers the cameras over the same network cable, so a smaller system needs no separate switch or power supplies.

Key features

16 IP camera channels, cameras up to 32 MP
Recording bandwidth up to 140 Mbps
4 SATA HDD bays, up to 24TB in total
RAID: RAID-1
16 PoE ports, total PoE budget 200W
Monitor output: FHD : HDMI & VGA Dual monitor UHD : HDMI Single monitor
Recording H.265, H.264, MJPEG
Remote viewing with Wisenet Viewer and the Wisenet mobile app

Technical data

Channels	16
Camera resolution	up to 32 MP
Recording bandwidth	140 Mbit/s
Hard disks	4x SATA, max 24TB
RAID	RAID-1
PoE ports	16 (200W)
Monitor output	FHD : HDMI & VGA Dual monitor UHD : HDMI Single monitor
Chassis	2U
Power	100–240 VAC ±10%, 50/60Hz
Weight	5.76 kg
