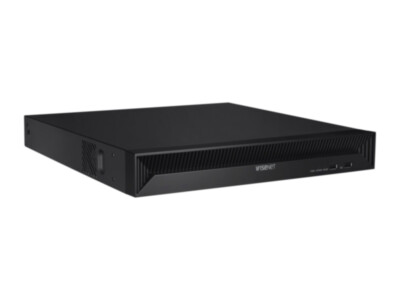

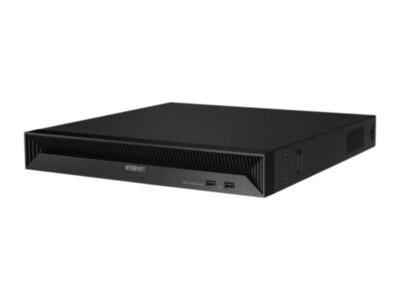

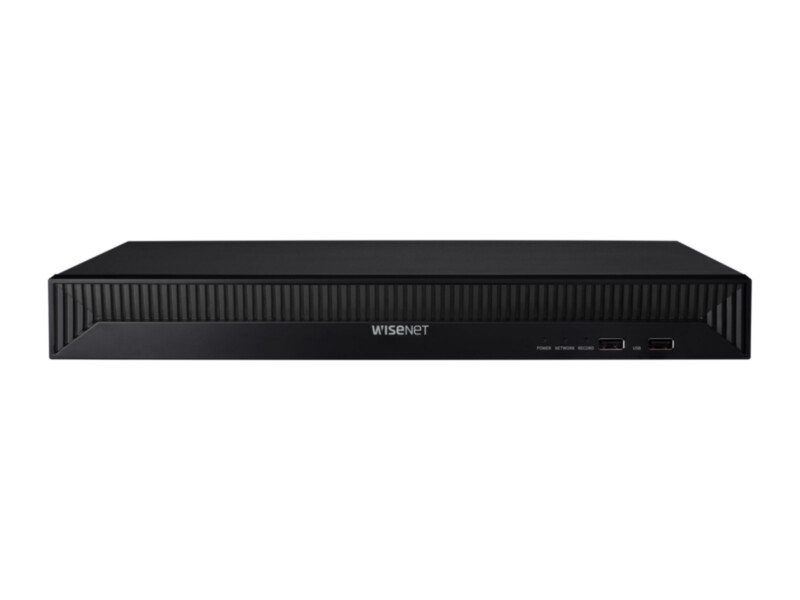

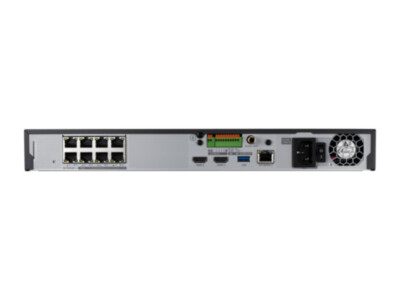

Hanwha XRN-815S network video recorder (NVR), 8 channels, 2x HDD, 8x PoE

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€830.00 €1,029

Pre-order

SKU

XRN-815S

Product files

Datasheet

Product details

Product parameters
Manufacturer	Hanwha Vision
Length	370
Width	51
Height	320

Toote kirjeldus

Hanwha XRN-815S is a 8-channel network video recorder (NVR) for IP cameras with a built-in 8-port PoE switch and 2 HDD bays. A network video recorder receives the IP cameras' video streams, records them on hard disks and lets you watch live and recorded video on a local monitor, a computer or a smartphone.

The built-in PoE switch powers the cameras over the same network cable, so a smaller system needs no separate switch or power supplies.

Key features

8 IP camera channels, cameras up to 8 MP
Recording bandwidth up to 100 Mbps
2 SATA HDD bays, up to 20TB in total
8 PoE ports, total PoE budget 100W
Monitor output: HDMI1: 3840x2160(30Hz), HDMI2: 1920x1080(60Hz)
Recording H.265, H.264, MJPEG
Remote viewing with Wisenet Viewer and the Wisenet mobile app

Technical data

Channels	8
Camera resolution	up to 8 MP
Recording bandwidth	100 Mbit/s
Hard disks	2x SATA, max 20TB
PoE ports	8 (100W)
Monitor output	HDMI1: 3840x2160(30Hz), HDMI2: 1920x1080(60Hz)
Chassis	1U
Power	100–240 VAC ±10%, 50/60Hz
Weight	2.86 kg
