| Manufacturer | Honeywell |
|---|

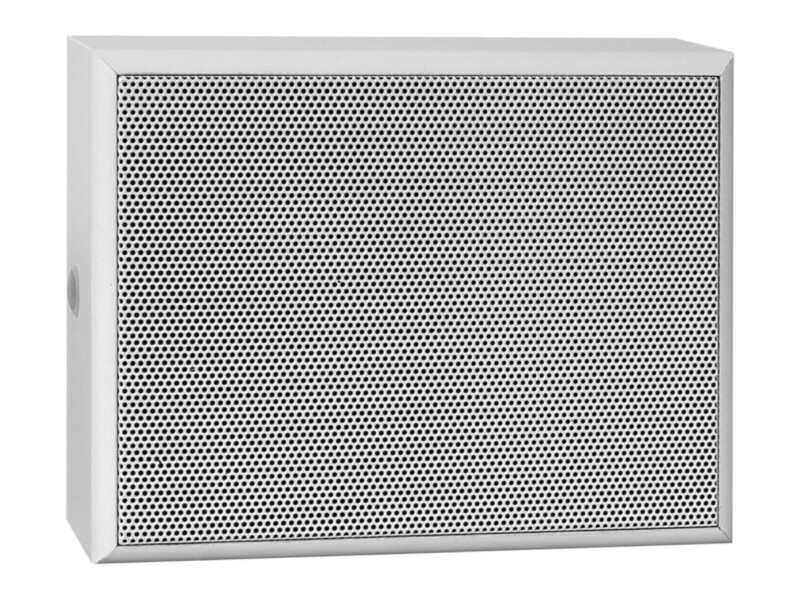

WA-AB 06-100/T is an A/B-line wall loudspeaker for voice alarm systems. It has two independent drivers and two 100 V transformers fed via two separate lines; if one line fails, notification continues. The MDF housing is ball-proof, so it suits sports halls and schools; protection IP54.
| Power | 6 W |
|---|---|
| Power taps (100 V) | 6 / 3 / 1.5 W |
| Sensitivity 1 W / 1 m | 89.5 dB |
| Max. SPL at 1 m | 97 dB |
| Frequency range | 227 … 14600 Hz (-10 dB) |
| Dispersion angle | 180° (H), 160° (V) @ 1 kHz |
| Protection rating | IP 54 (zertifiziert) |
| Operating temperature | -20 °C … 80 °C |
| Colour | white, similar to RAL 9010 |

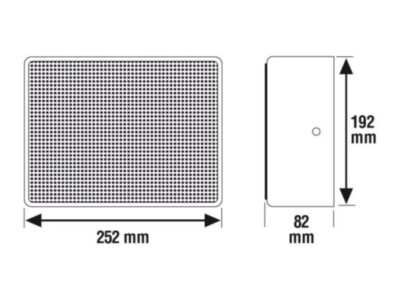

| Dimensions | 254 × 195 × 81 mm (W × H × D) |
| Weight | approx. 2.3 kg |
