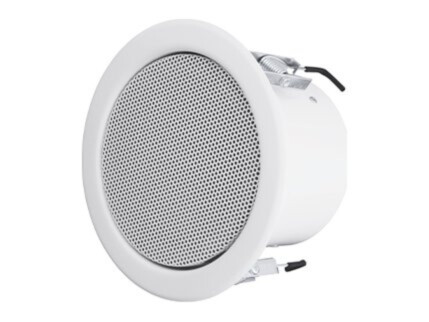

Honeywell ceiling loudspeaker DEL 130/10 PP, 10 W, with fire dome, EN 54-24

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€177.00 €219

Pre-order

SKU

581193

Product files

Datasheet

Product details

Product parameters
Manufacturer	Honeywell

Toote kirjeldus

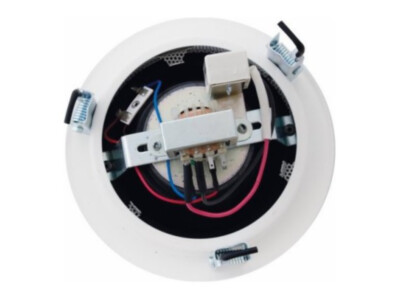

DEL 130/10 PP is a powder-coated metal ceiling loudspeaker for both background music and evacuation announcements in offices, hotels, shopping centres and schools. It has a 130 mm 10 W full-range driver with 100 V transformer, a fire dome, a 3-pin ceramic terminal block and a thermal fuse. Spring clamps make ceiling installation quick.

Key features

EN 54-24
10 W, 100 V transformer
Fire dome
Ceramic terminal block and thermal fuse
Colour RAL 9010

Technical data

Power	6 W
Power taps (100 V)	6/3/1.5/0.75 W
Driver	130 mm full-range
Sensitivity 1 W / 1 m	88 dB
Max. SPL at 1 m	96 dB
Frequency range	150-19400 Hz
Dispersion angle	180/175/130/65 °
Protection rating	IP21
Operating temperature	-10 … +55 °C
Material	powder-coated steel panel
Colour	RAL 9010
Dimensions	Ø180x121
Weight	1.4 kg
Certificate	1438-CPR-0685
