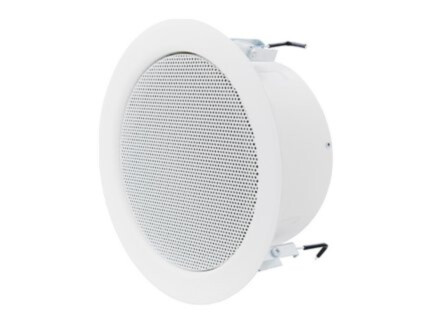

Honeywell ceiling loudspeaker DELF 165/6 PP, 6 W, low fire dome, EN 54-24

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€69.00 €86

In stock 8

SKU

581169

Product files

Datasheet

Product details

Product parameters
Manufacturer	Honeywell

Toote kirjeldus

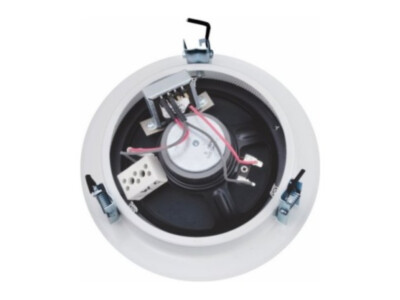

DELF 165/6 PP is a powder-coated metal ceiling loudspeaker for both background music and evacuation announcements, e.g. in offices, hotels, shopping centres and schools. It has a 165 mm full-range driver with 100 V transformer, a fire dome, a 3-pin ceramic terminal block and a thermal fuse. The low dome suits places with little space above the ceiling, and spring clamps make installation quick.

Key features

EN 54-24
6 W, 100 V transformer (6/3/1.5/0.75 W)
Fire dome only 6 cm high
Ceramic terminal block and thermal fuse
Colour RAL 9010

Technical data

Power	6 W
Power taps (100 V)	6/3/1.5/0.75 W
Driver	165 mm full-range
Sensitivity 1 W / 1 m	93 dB
Max. SPL at 1 m	101 dB
Frequency range	325-16100 Hz
Dispersion angle	180/180/80/70 °
Protection rating	IP21C / IP32
Operating temperature	-10 … +55 °C
Material	powder-coated steel panel
Colour	RAL 9010
Dimensions	Ø220x102
Weight	1.5 kg
Certificate	1438/CPR/0177
