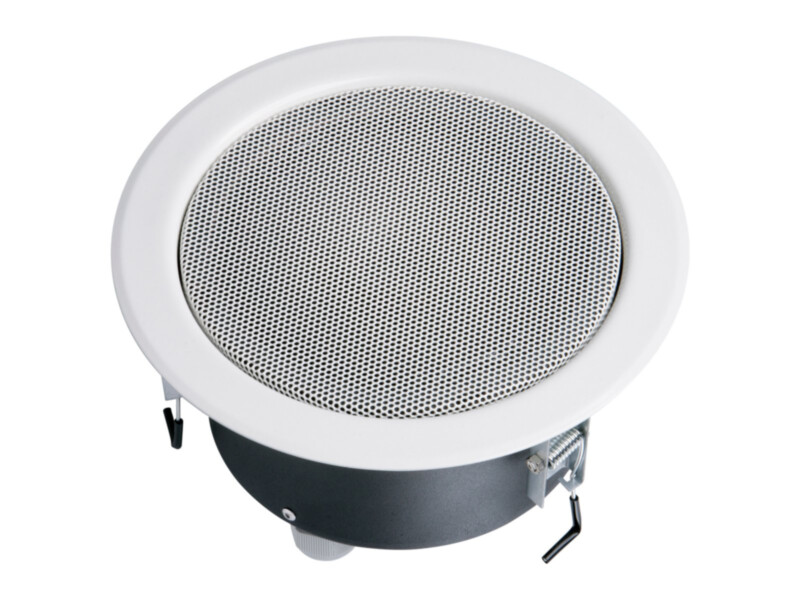

Honeywell ceiling loudspeaker DL 10-165/T plus, 10 W, 2-way, 6.5", EN 54-24

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€121.00 €150

Pre-order

SKU

582404

Product details

Product parameters
Manufacturer	Honeywell

Toote kirjeldus

DL 10-165/T plus is a 2-way metal ceiling loudspeaker (RAL 9010) for demanding audio projects: bistros, restaurants, hotels and other public spaces. The moisture-proof 165 mm driver delivers up to 10 W and can be set to 6, 3 or 1.5 W. It has a ceramic terminal, thermal fuse and fire dome; spring clamps make installation quick.

Key features

EN 54-24
10 W, 100 V (10/6/3/1.5 W)
2-way, 165 mm
Fire dome, ceramic terminal, thermal fuse

Technical data

Power	10 W
Power taps (100 V)	10 / 6 / 3 / 1.5 W
Sensitivity 1 W / 1 m	87.7 dB
Max. SPL at 1 m	97.7 dB
Frequency range	374 … 23.400 Hz
Dispersion angle	180° (H), 180° (V)
Operating temperature	-20 °C … 80 °C
Colour	white, similar to RAL 9010
Ceiling cut-out	(Ø min.) 200 mm

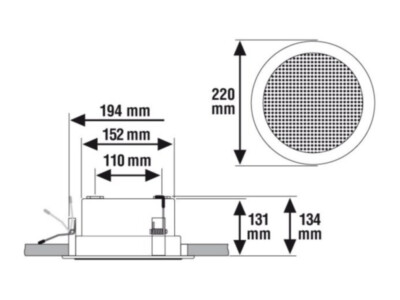

Dimensions	Ø220 × 134 mm
Weight	approx. 1.66 kg
