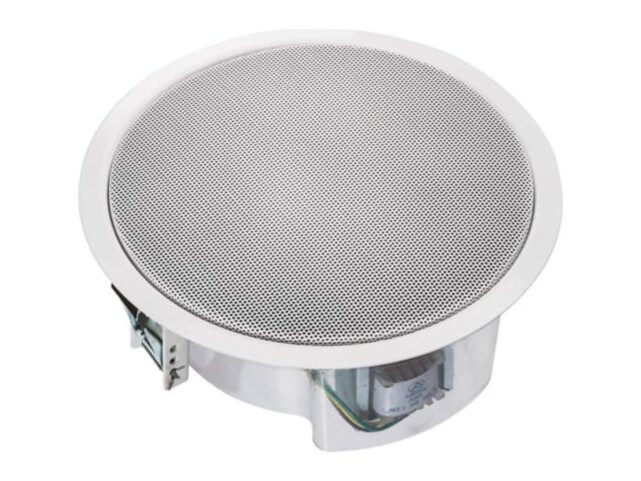

Honeywell ceiling loudspeaker DL-E 06-130/T, 6 W, 5", for metal ceilings, EN 54-24

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€54.00 €67

Pre-order

SKU

582407

Product files

Datasheet

Product details

Product parameters
Manufacturer	Honeywell

Toote kirjeldus

DL-E 06-130/T is a flat ceiling loudspeaker for metal ceilings (RAL 9010) that blends into the ceiling. The moisture-proof 5" full-range driver is efficient and the power can be set to 6, 3 or 1.5 W. A plastic protective cover is fitted on the back; an EN 54-24 certified fire dome (582407.FD) is available separately. For BS 5839-8 a thermal fuse and ceramic terminal can be added.

Key features

EN 54-24
6 W, 100 V (6/3/1.5 W)
5" driver, flat design
Fire dome separately: 582407.FD
Spring clamps (2 pcs)

Technical data

Power	6 W
Power taps (100 V)	6/3/1.5 W
Sensitivity 1 W / 1 m	88.9 dB
Max. SPL at 1 m	96.7 dB
Frequency range	104 … 17200 Hz
Dispersion angle	180° (H), 180° (V)
Operating temperature	-10 °C … 55 °C
Colour	white, similar to RAL 9010
Ceiling cut-out	(Ø min.) 156 mm
Dimensions	Ø: 181.5 mm D: 66 mm
Weight	approx. 0.51 kg
