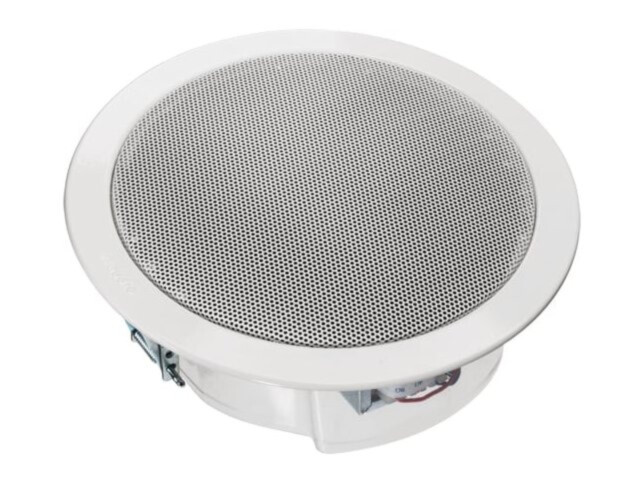

Honeywell ceiling loudspeaker DL-E 06-165/T, 6 W, 6.5", metal, EN 54-24

Skip to the beginning of the images gallery

€60.00 €74

Pre-order

SKU

582408

Product details

Product parameters
Manufacturer	Honeywell

Toote kirjeldus

DL-E 06-165/T is a flat ceiling loudspeaker that fits neatly into the ceiling. The moisture-proof 6.5" full-range driver is efficient and the power can be set to 6, 3 or 1.5 W. A plastic protective cover is fitted on the back; an EN 54-24 certified fire dome (582408.FD) is available separately. For BS 5839-8 a thermal fuse and ceramic terminal can be added.

Key features

EN 54-24
6 W, 100 V (6/3/1.5 W)
6.5" driver
Fire dome separately: 582408.FD
Spring clamps (3 pcs)

Technical data

Power	6 W
Power taps (100 V)	6/3/1.5 W
Sensitivity 1 W / 1 m	97.8 dB
Max. SPL at 1 m	105.3 dB
Frequency range	300 … 19300 Hz (-10 dB)
Dispersion angle	180° @ 1kHz
Operating temperature	-10 °C … 55 °C
Colour	white, similar to RAL 9016
Dimensions	Ø199 × 76 mm
Weight	approx. 0.68 kg
