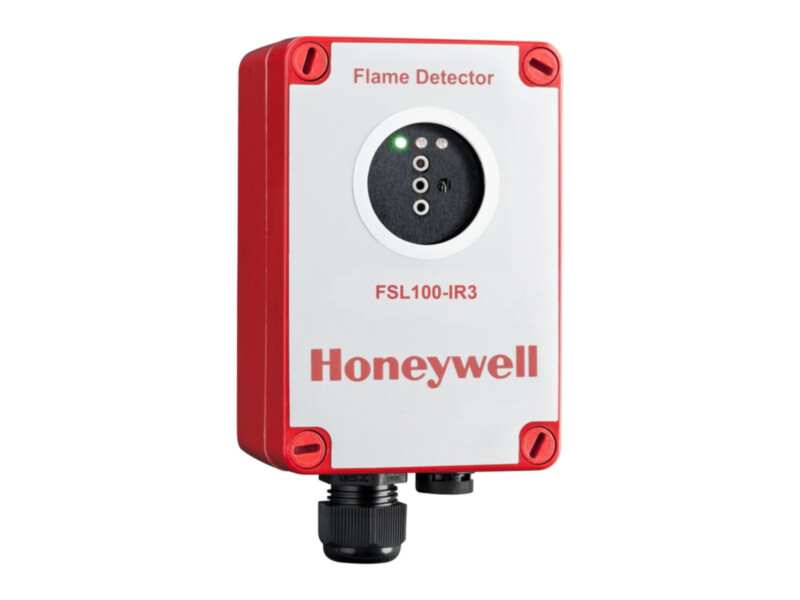

Honeywell FSL100 IR3 flame detector | red | three-channel IR | ATEX zone 2/22 | EN 54-10

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€4,572.00 €5,669

Pre-order

SKU

FSL100-IR3

Product files

Datasheet

Product details

Product parameters
Manufacturer	Honeywell

Toote kirjeldus

The FSL100-IR3 detects fast-developing flaming fires. Three-channel infrared analysis gives high resistance to disturbance variables; the detector is particularly suited to liquid hydrocarbon and dirty, smoky fires and is less affected by window contamination. It suits most light industrial applications, storage areas and machinery. The cone of vision is 90°, the range 35 m (0.1 m² n-heptane fire within 10 seconds). The IP65 housing of glass-reinforced polyester is UV resistant and self-extinguishing; a pressure compensation element prevents moisture build-up. The detector has automatic and manually initiated self-test, relay and 4–20 mA outputs.

Key features

Three-channel IR detection
Range 35 m, 90° cone of vision
Indoor and outdoor, ATEX zone 2/22
IP65 GRP housing
Alarm and fault relays, 4–20 mA output
Automatic and manual self-test
EN 54-10, FM 3260

Technical data

Range	35 m (0.1 m² n-heptane fire, alarm within 10 s)
Cone of vision	min. 90° horizontal and vertical
Operating voltage	10…28 V DC (12…24 V DC nominal)
Quiescent current	25 mA (24 V DC)
Alarm current	approx. 75 mA (24 V DC)
Alarm response time	8…30 s
Outputs	alarm relay and fault relay (SPDT, 30 V DC / 2 A, max. 60 W); 4–20 mA
Terminals	0.5…1.5 mm²; M20 cable entry (gland for cable Ø 5.5…13 mm)
Explosion protection	Ex II 3G Ex nA IIC T4 Gc; Ex II 3D Ex tc IIIC T71 °C Dc
Protection rating	IP65
Operating temperature	−40…+70 °C (ATEX: −25…+70 °C)
Material	glass-reinforced polyester (GRP), UV resistant, self-extinguishing V-0
Colour	red
Weight	465 g
Dimensions	125 × 80 × 57 mm
Standard	EN 54-10, FM 3260
