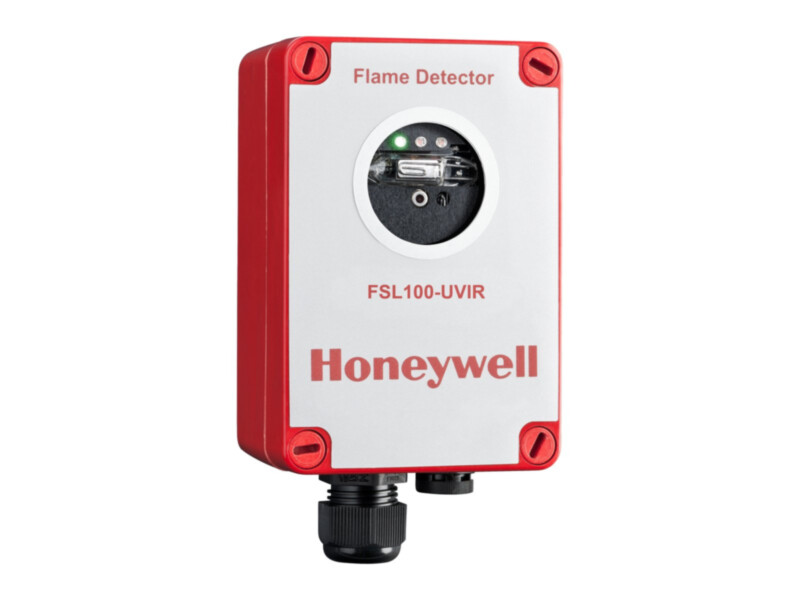

Honeywell FSL100 UV/IR flame detector | red | UV + IR | ATEX zone 2/22 | EN 54-10

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€3,510.00 €4,352

Pre-order

SKU

FSL100-UVIR

Product files

Datasheet

Product details

Product parameters
Manufacturer	Honeywell

Toote kirjeldus

The FSL100-UVIR detects fast-developing flaming fires using two methods – ultraviolet and infrared – so that a wide range of hydrocarbon and non-hydrocarbon fires is detected effectively. Analysis of the flame flicker frequency improves false alarm rejection. It is designed for applications such as chemical storage, electric power transformers, fuel and charging stations, hydrogen storage and laboratories. The cone of vision is 90°, the range 25 m (0.1 m² n-heptane fire within 10 seconds). The IP65 housing of glass-reinforced polyester is UV resistant and self-extinguishing; a pressure compensation element prevents moisture build-up. The detector has automatic and manually initiated self-test, relay and 4–20 mA outputs.

Key features

Dual UV/IR detection
Range 25 m, 90° cone of vision
Indoor and outdoor, ATEX zone 2/22
IP65 GRP housing
Alarm and fault relays, 4–20 mA output
Automatic and manual self-test
EN 54-10, FM 3260

Technical data

Range	25 m (0.1 m² n-heptane fire, alarm within 10 s)
Cone of vision	min. 90° horizontal and vertical
Operating voltage	10…28 V DC (12…24 V DC nominal)
Quiescent current	25 mA (24 V DC)
Alarm current	approx. 75 mA (24 V DC)
Alarm response time	8…30 s
Outputs	alarm relay and fault relay (SPDT, 30 V DC / 2 A, max. 60 W); 4–20 mA
Terminals	0.5…1.5 mm²; M20 cable entry (gland for cable Ø 5.5…13 mm)
Explosion protection	Ex II 3G Ex nA IIC T4 Gc; Ex II 3D Ex tc IIIC T71 °C Dc
Protection rating	IP65
Operating temperature	−40…+70 °C (ATEX: −25…+70 °C)
Material	glass-reinforced polyester (GRP), UV resistant, self-extinguishing V-0
Colour	red
Weight	465 g
Dimensions	125 × 80 × 57 mm
Standard	EN 54-10, FM 3260
