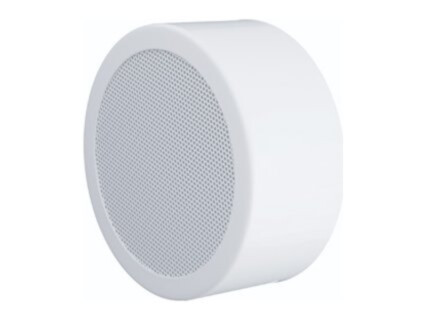

Honeywell surface-mount loudspeaker DAL 165/10 PP, 10 W, ceiling or wall, EN 54-24

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€88.00 €109

Pre-order

SKU

581186

Product files

Datasheet

Toote kirjeldus

DAL 165/10 PP is a powder-coated metal surface-mount loudspeaker for ceiling or wall, for background music and evacuation announcements in offices, hotels, shopping centres and schools. It has a 165 mm full-range driver with 100 V transformer (10/6/3/1.5 W), a 3-pin ceramic terminal block and a thermal fuse.

Key features

EN 54-24
10 W, 100 V transformer (10/6/3/1.5 W)
Surface mounting on ceiling or wall
Ceramic terminal block and thermal fuse
Colour RAL 9010

Technical data

Power	10 W
Power taps (100 V)	10/6/3/1.5 W
Driver	165 mm full-range
Sensitivity 1 W / 1 m	91 dB
Max. SPL at 1 m	101 dB
Frequency range	110-16100 Hz
Dispersion angle	180/180/102.5/65 °
Protection rating	IP21
Operating temperature	-10 … +55 °C
Material	powder-coated steel panel
Colour	RAL 9010
Dimensions	Ø170x75
Weight	1.2 kg
Certificate	1438-CPR-0684
